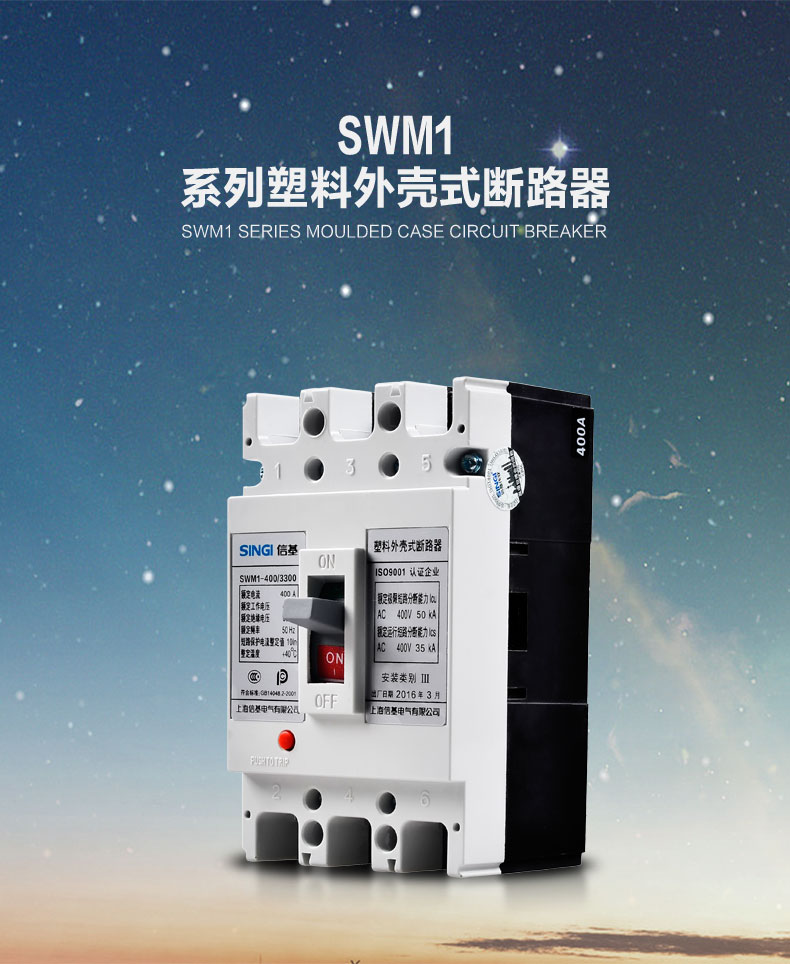

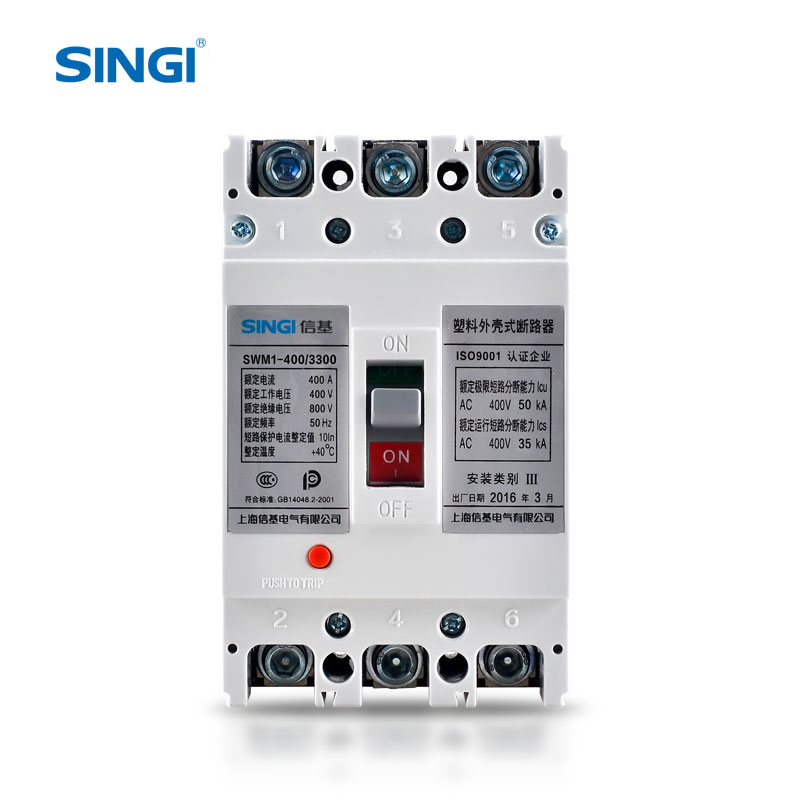

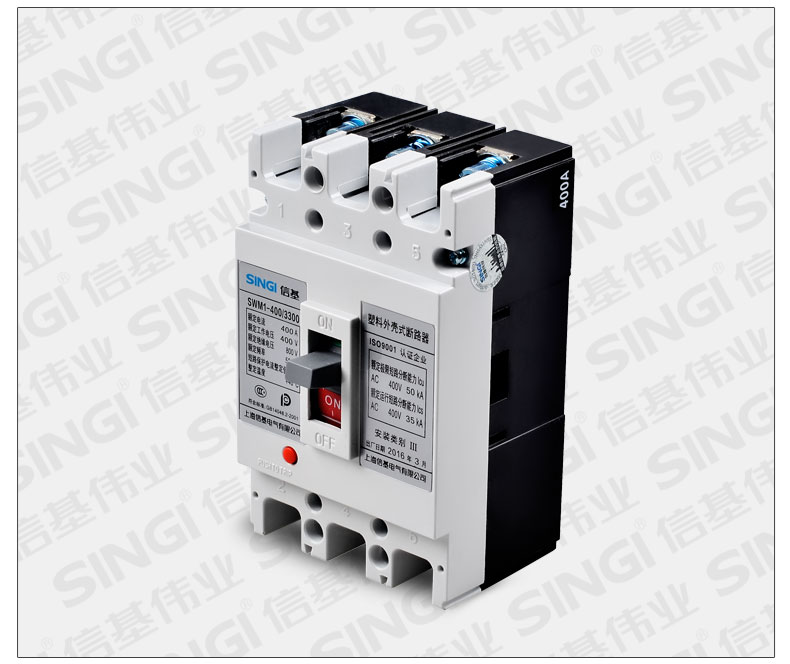

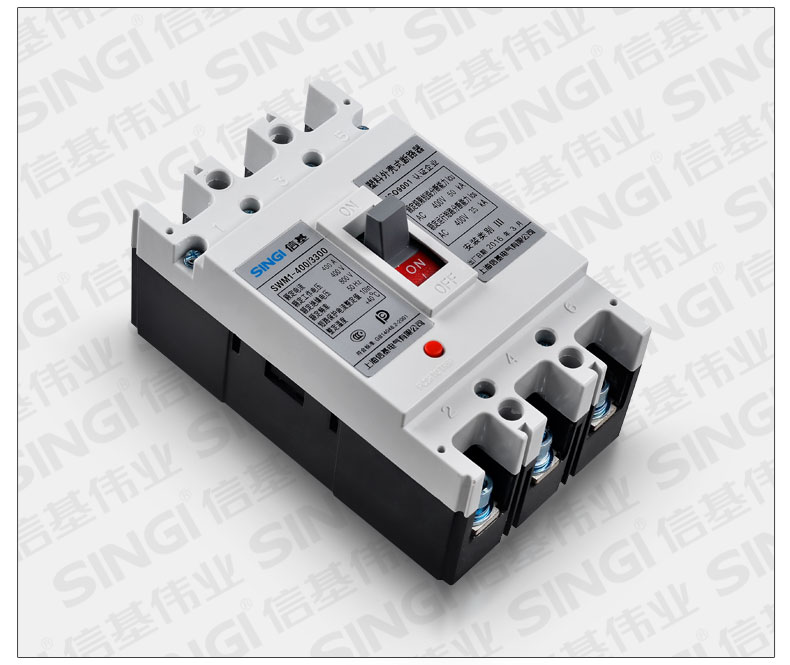

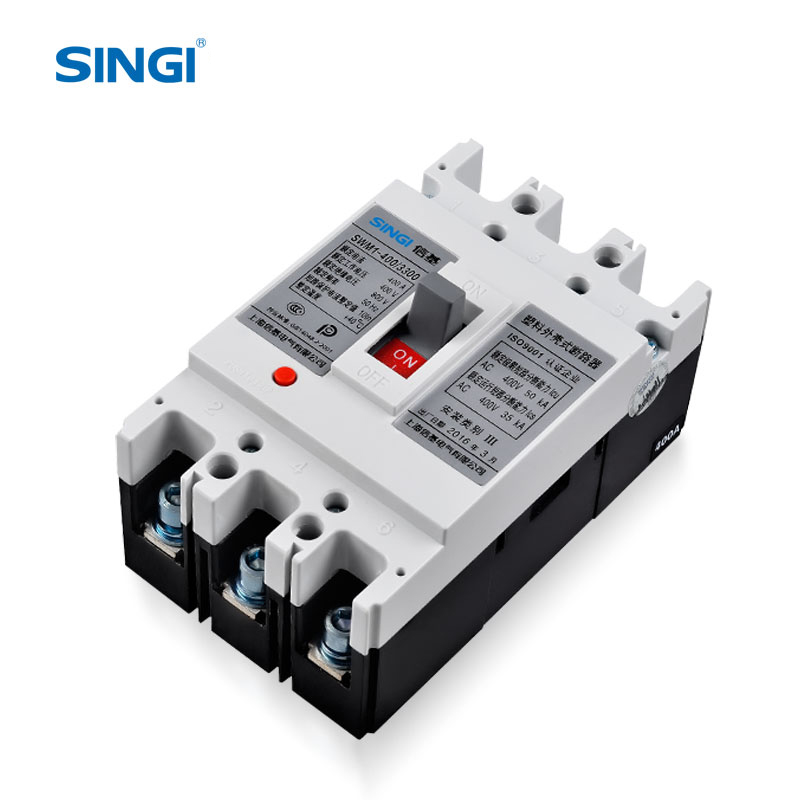

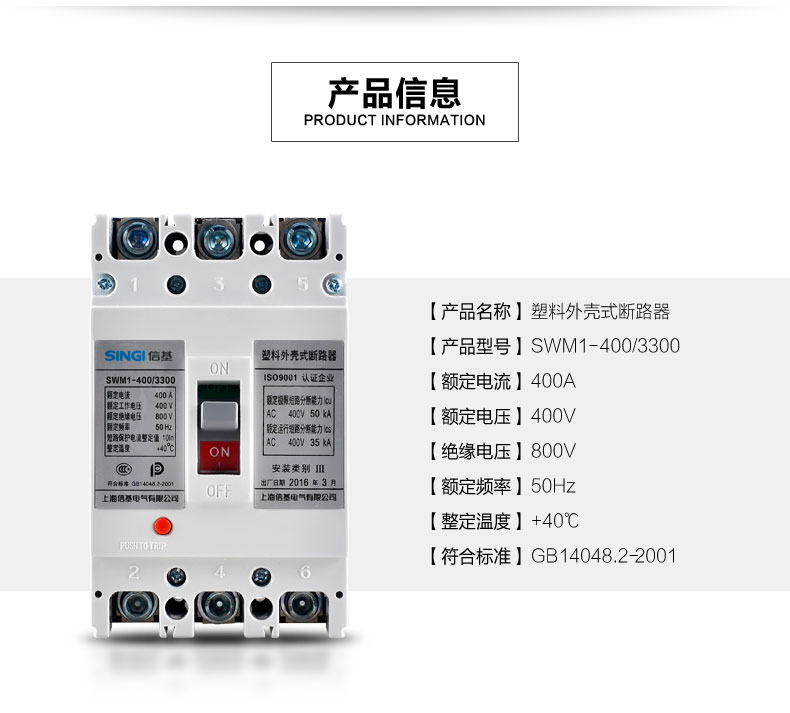

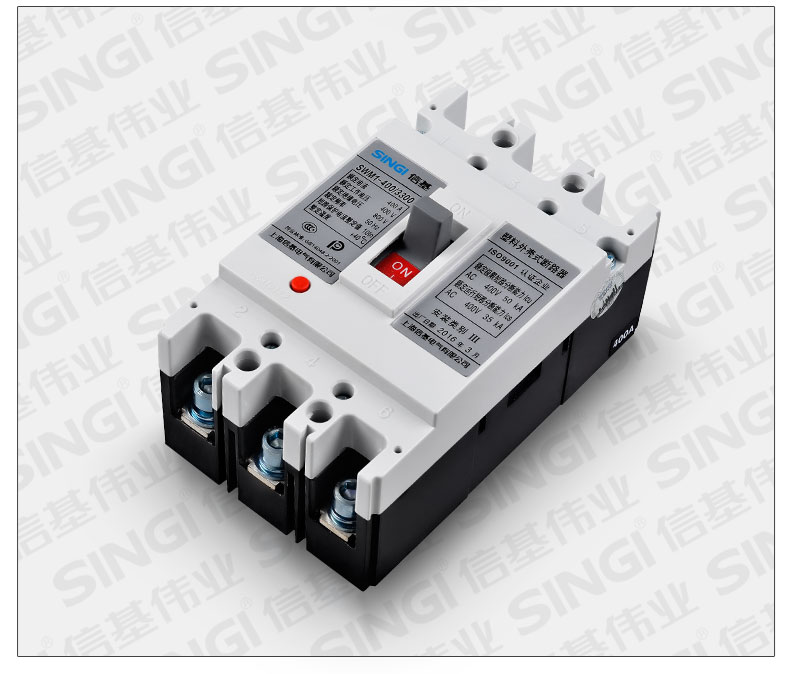

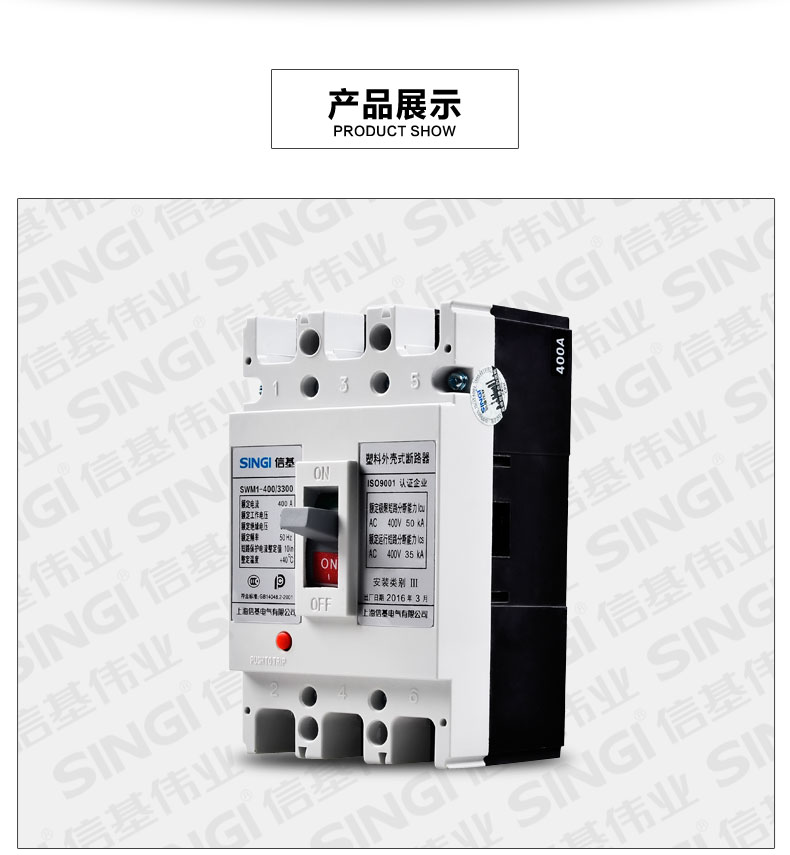

SWM1 Molded Case Circuit Breaker

Breaking Capacity:25-100ka ;
Rated Current: 6-1250A ;
Rated Voltage:690V and below ;
OEM,ODM:Available ;
状态：
Num：
Inquire Add to Basket

Product Parameters






SWM1 moulded case circuit breaker with rated insulation voltage 800V, applied in the power system of AC50(60)Hz, rated voltage 690V and below, rated current 1250A and below as the transfer not frequently. The circuit breaker has the protection devices of over load, short circuit and under voltage ,it can protect the circuit and power equipment from broken.


The mccb can be sorted to C type (basic),L type (standard),M type (high breaking), H type(higher breaking) according to its rated limit short circuit breaking capacity.


The mccb has the features small volume, breaking capacity high, electric arcing short ,anti-vibration. It is the ideal product for application in land and ship.


The installation can be vertical or level and the standard conforms to IEC60947-2 and GB14048.2.


Trip Characteristics

  • Thermal release with inverse time lag
  • 1.05In (cool): no trip ≥1–2h
  • 1.3In (heated): trip <1–2h
  • Electromagnetic release adjustable for distribution or motor protection

  • Suitable for both power distribution and motor circuits


General Parameters

  • Standards: IEC 60947-2, GB 14048.2
  • Utilization category: A
  • Working temperature: -5℃ ~ +40℃
  • Arc distance: ≤50mm / ≤120mm
  • Mechanical life: 2000–10000 cycles
  • Electrical life: 2000–8500 cycles

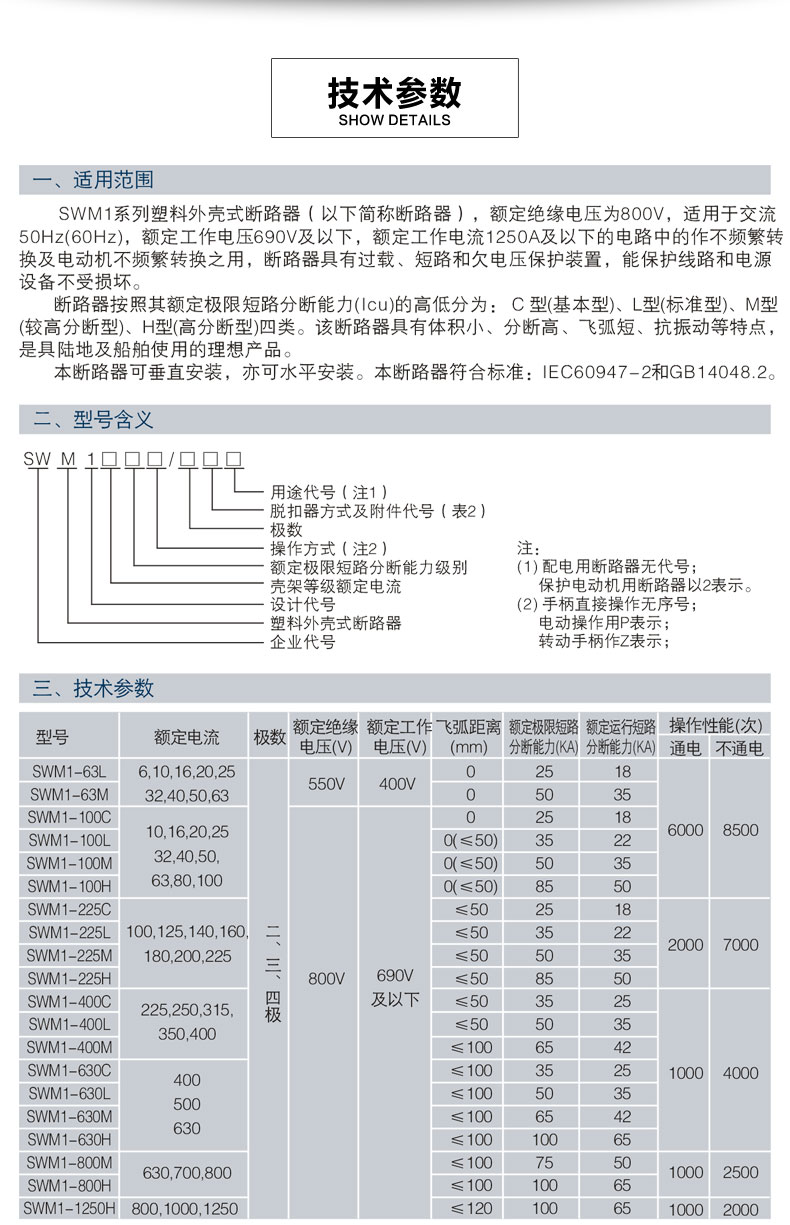

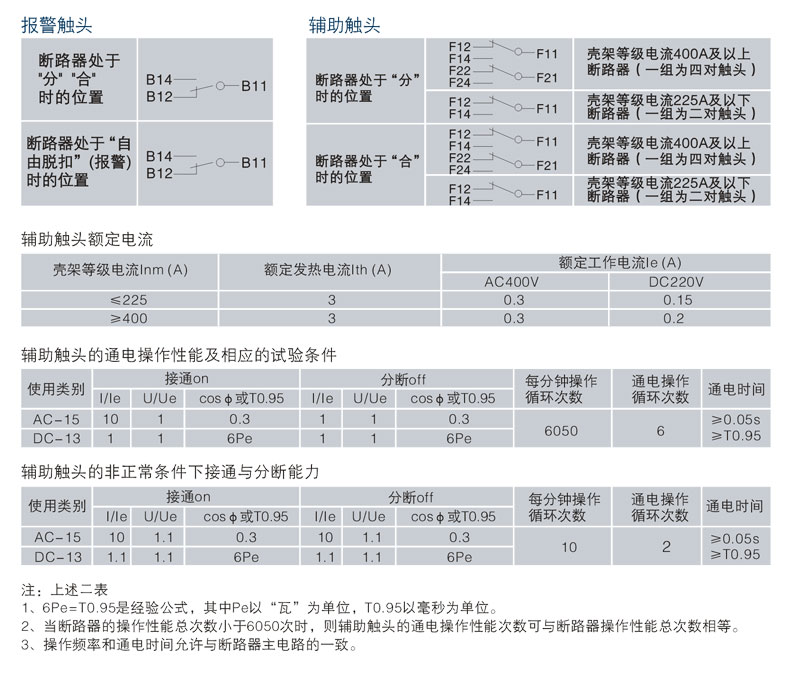

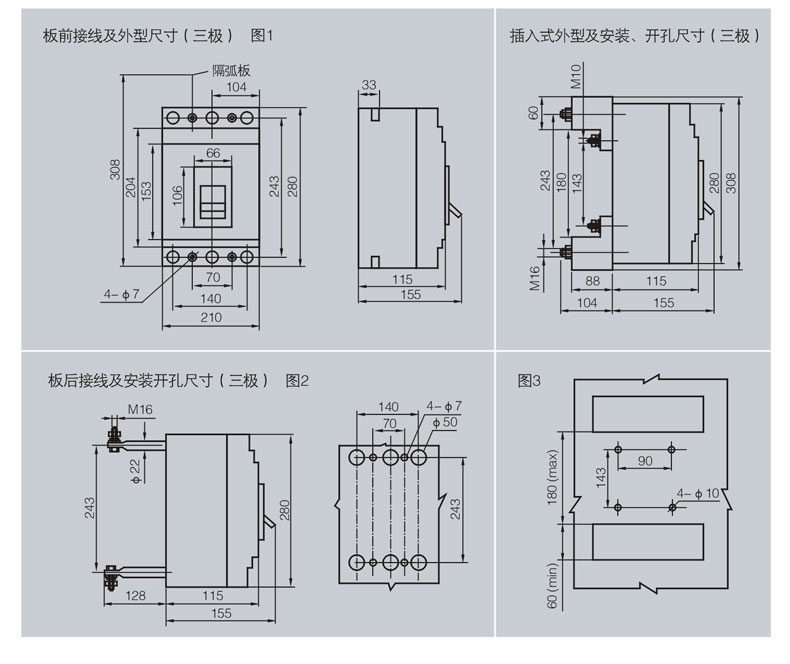

TECHNICAL PARAMETERS





   Model



Rated

Current

(A)





Poles

Rated



Rated

Insulation

Voltage

(V)



Rated

Voltage

(V)



Electric

Arcing

Distance

(mm)

Rated

Limit

Short circuit

Breaking

Capacity

(KA)

Rated

Working

Short

-circuit

Breaking

Capacity

(KA)

O performance

Performance (Times)

On-power Off-power

SWM1-63L

6,10,

16,20,

25,32,

40,50,

63































2,3,4































  800

400

0

25

18

6000

8500



SWM1-63M





690v

and

below

50

35

SWM1-100C

10,16,

20,25,

32,40,

50,63,

80,100

25

18

SWM1-100L



 0(<=50)

35

22

SWM1-100M

50

35

SWM1-100H

85

50

SWM1-225C

100,125,

140,160,

180,200,

225

400







<=50

25

18

2000

7000

SWM1-225L













690v

and

below

35

22

SWM1-225M

50

35

SWM1-225H

85

50

SWM1-400C

225,250,

315,350,

400

35

25

1000

4000

SWM1-400L

50

35

SWM1-400M









<=100

65

42

SWM1-630C



400,500,

630

35

25

SWM1-630L

50

35

SWM1-630M

65

42

SWM1-630H

100

65

SWM1-800M

630,700,

800

75

50

1000

2500

SWM1-800H

100

65

SWM1-1250H

800,1000,

1250

 <=120

100

65

1000

2000

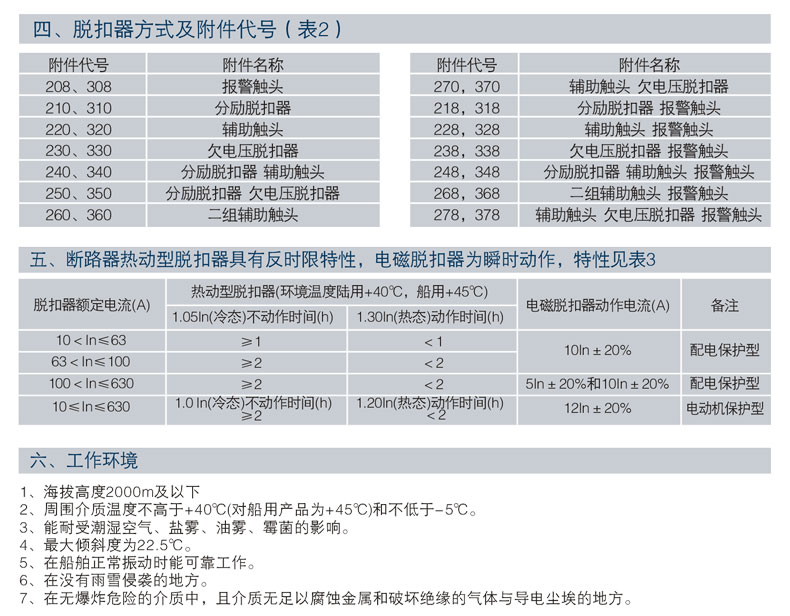

THERMAL RELEASE WITH  INVERSE TIME LAG

Ui of release

(A)

Thermal breaking release  (40for land,45°Cfor ship)

Electromagnetic release breaking current(A)

Remark

1.05In(cool station)no breaking time(h)

1.30(thermal station) breaking time(h)

10<In<63

>=1

<1

10In±20%

Power distribution

63<In<100

>=2

<2

100<In<630

>=2

<2

5In±20%&10In±20%

Power distribution

10<In<630

1.0In(cool) no breaking time(h)

1.20In(thermal) breaking time(h)

12In±20%

Motor protection


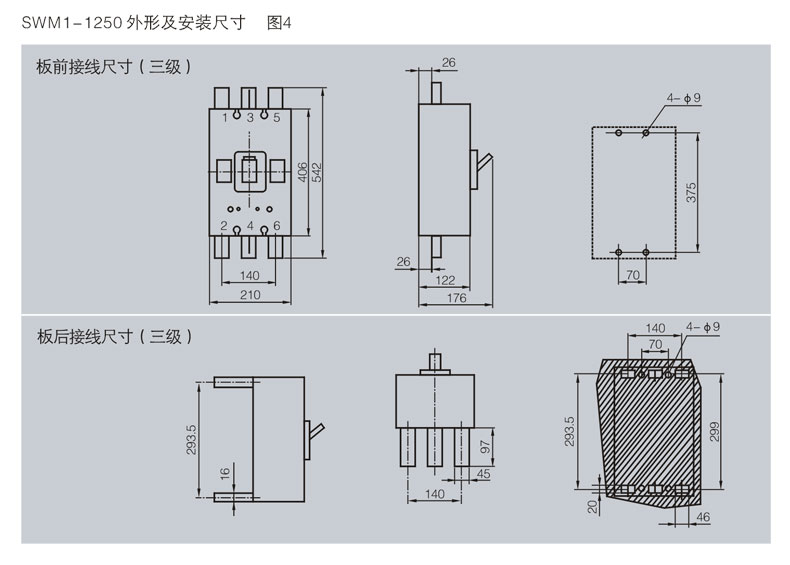

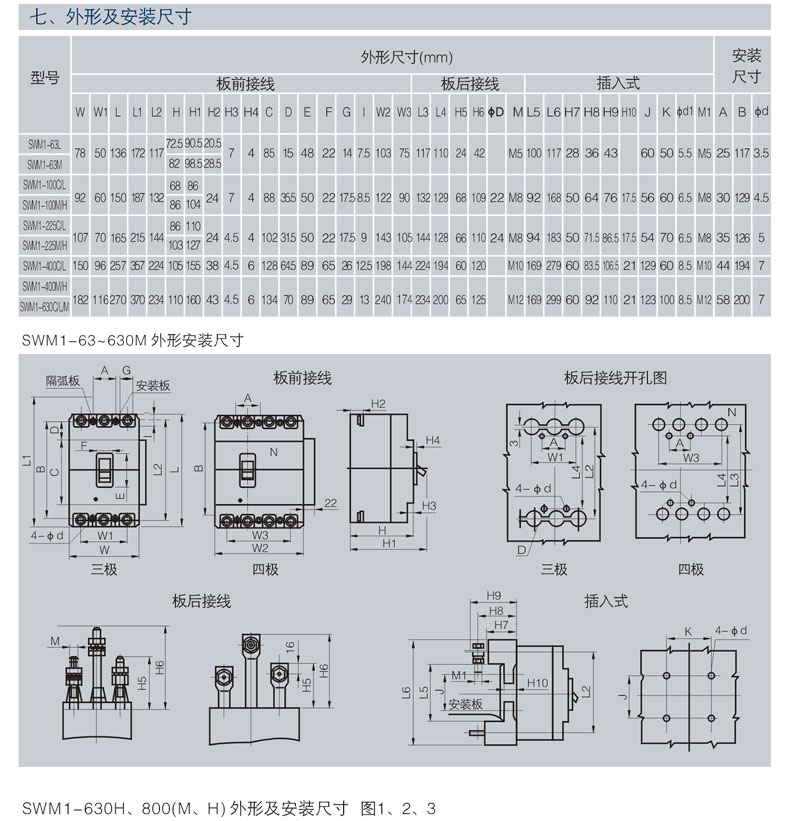

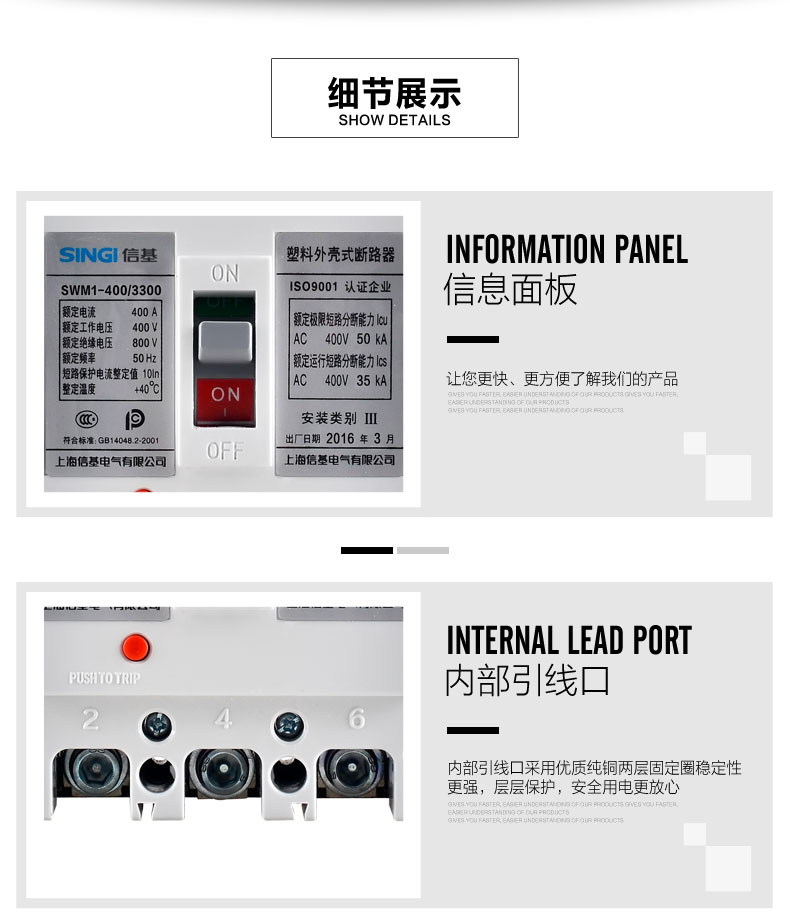

SINGI 介绍750.jpg

MCCB

MCCB

MCCB

MCCB

MCCB

MCCB

MCCB

MCCB

MCCB

MCCB

MCCBMCCB

MCCB

MCCB

MCCB


FAQ

Q: What is the difference between C/L/M/H breaking grades in SWM1 MCCB?A: C=basic (25kA) for light commercial; L=standard (35–50kA) for general industry; M=high (50–75kA) for heavy industry; H=higher (85–120kA) for high-fault-power grids, data centers, and marine. Higher grades handle larger short-circuit currents safely.

Q: Why can SWM1 be installed both vertically and horizontally while many MCCBs cannot?A: SWM1 uses a balanced internal mechanism and gravity-independent tripping structure. Most MCCBs rely on gravity and can only be mounted vertically. SWM1’s design makes it ideal for compact cabinets, ships, and special equipment.

Q: What is the difference between SWM1 MCCB and ordinary MCB in application scenarios?A: MCB is for low-current branch circuits (usually ≤63A). SWM1 MCCB is for main incomers, large feeders, motors, and industrial systems up to 1250A. It provides higher breaking capacity, adjustable protection, and longer durability for heavy loads.

Q: Why is SWM1 suitable for both land and marine applications?A: It has anti-vibration structure, stable tripping under shock, high-temperature resistance, and reliable performance in harsh environments. Marine versions are calibrated to 45°C instead of 40°C for higher heat resistance.

Q: Can SWM1 MCCB protect both power distribution circuits and motors?A: Yes. It has dual calibration: distribution type uses 5In/10In electromagnetic tripping; motor type uses 12In tripping to avoid false tripping from high starting inrush current while providing overload and short-circuit protection.

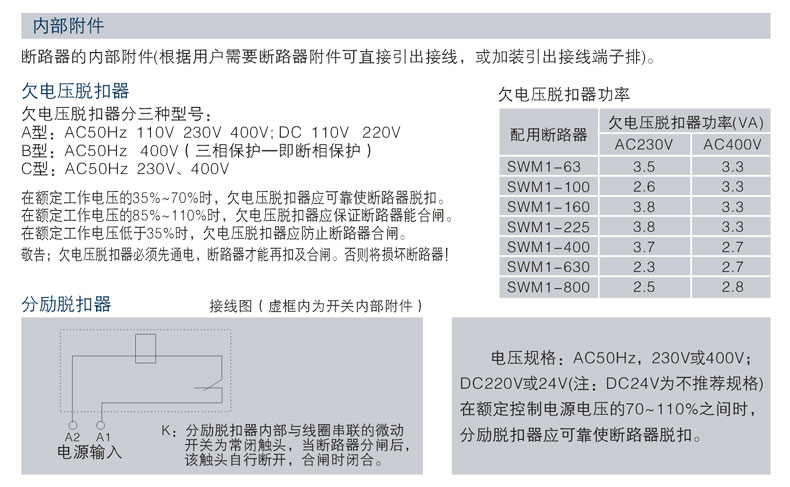

Q: What is the meaning of under-voltage protection in SWM1 MCCB?A: If the system voltage drops below a safe threshold, the MCCB automatically trips to prevent equipment damage, unstable operation, or abnormal heating caused by low voltage. It is critical for motors, compressors, and control systems.



About SINGI

Founded in 1995, SINGI is a globally recognized manufacturer specializing in high-end low-voltage electrical components. With over 30 years of manufacturing excellence, we provide comprehensive power distribution solutions to customers in more than 30 countries.

  • State-of-the-Art Manufacturing: Our 40,000 m² facility houses over 20 automated production lines, ensuring high precision and a stable supply chain for large-scale infrastructure projects.

  • Quality & Testing: Every SWM1 MCCB undergoes rigorous testing in our CNAS-standard laboratory. We utilize advanced testing equipment for thermal-magnetic tripping, mechanical endurance, and short-circuit breaking capacity.

  • Global Certifications: SINGI operates under ISO9001 and ISO14001 management systems. Our product portfolio is fully certified by CE, CB, UL, and CCC, meeting the highest safety benchmarks in Europe, Asia, and the Americas.

  • Strategic Partner: Trusted by global leaders such as Honeywell, CHINT, and HONYAR, SINGI continues to drive innovation in electrical safety and smart power distribution.


Application Scenarios

  • Industrial power distribution: factories, workshops, machinery
  • Commercial main incoming: buildings, malls, hospitals, data centers
  • Motor and heavy equipment protection
  • Generator and transformer output protection
  • Marine and ship power systems
  • Infrastructure and construction sites
  • Mining and heavy-duty power systems
  • OEM equipment and control panels
