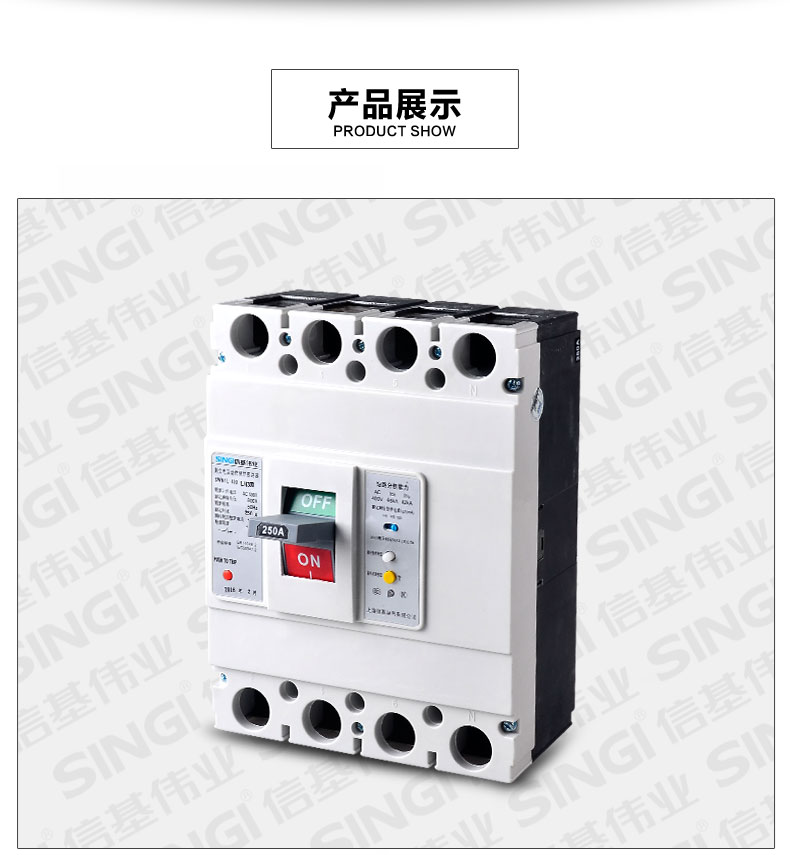

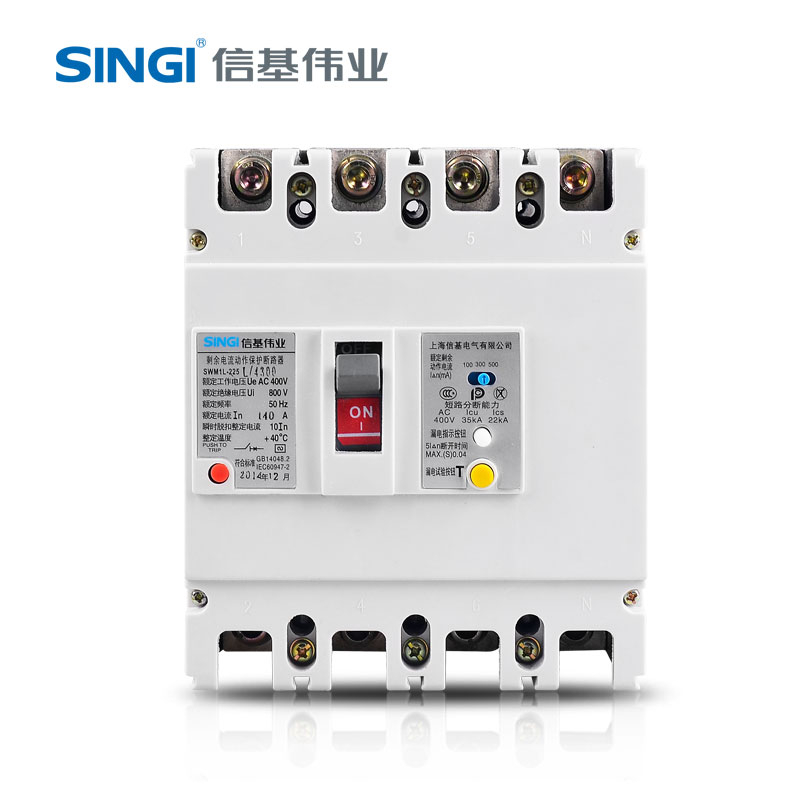

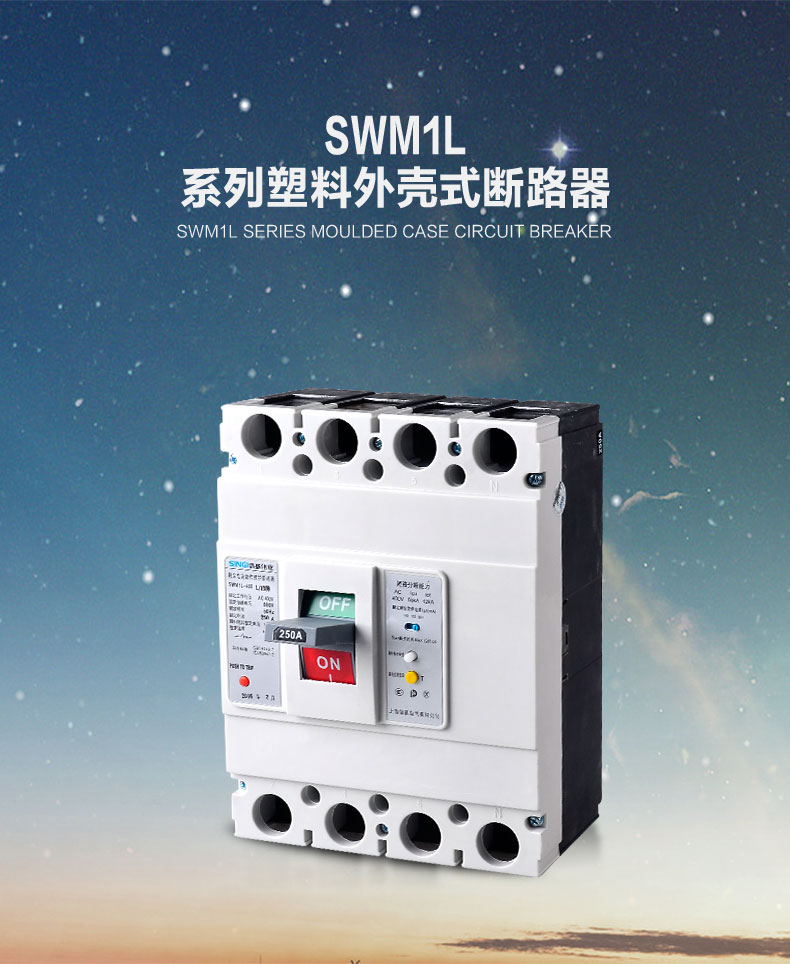

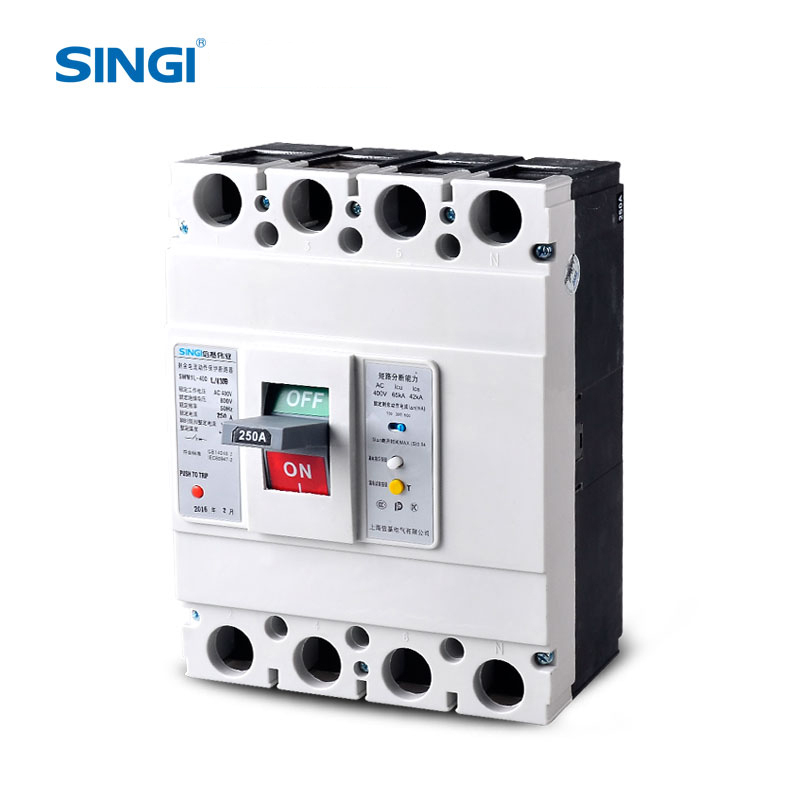

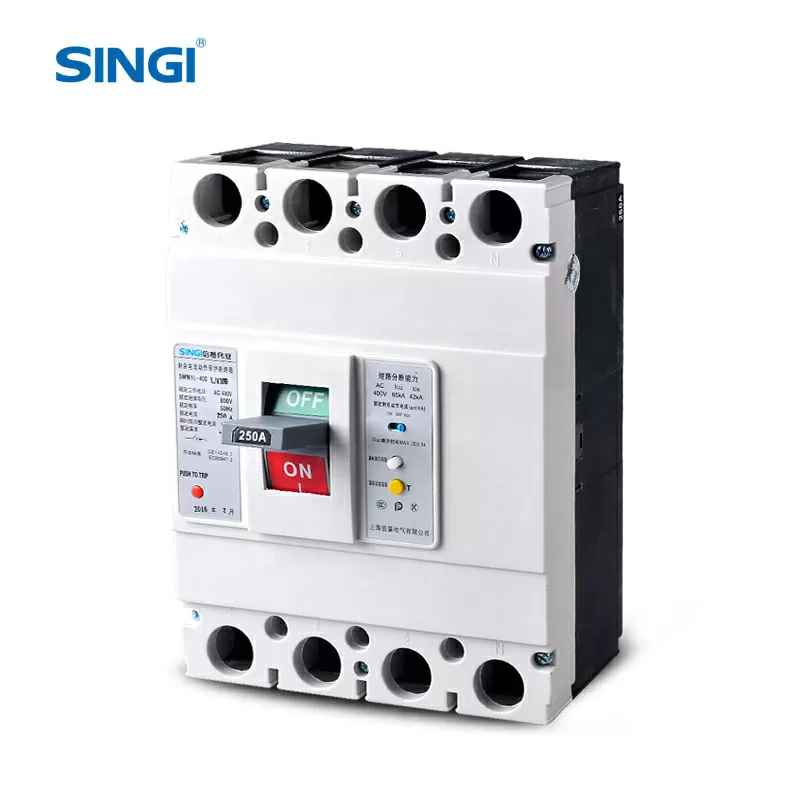

SWM1L

SWM1L residual current protection circuit breaker is suitable to the power distributionsystem of AC50Hz,rated voltage400V,rated current to 800Ato supply indirect contact protection and preventthefire caused bythe earth faultcurrentbecause ofthe insulation damaged of equipment. It also can be used to distribute power and protect circuit and overload, shortcircuit, undervoltage, also non-frequenttransferofcircuitornon frequent startingofmotor.
状态：
Num：
Inquire Add to Basket

Product Parameters

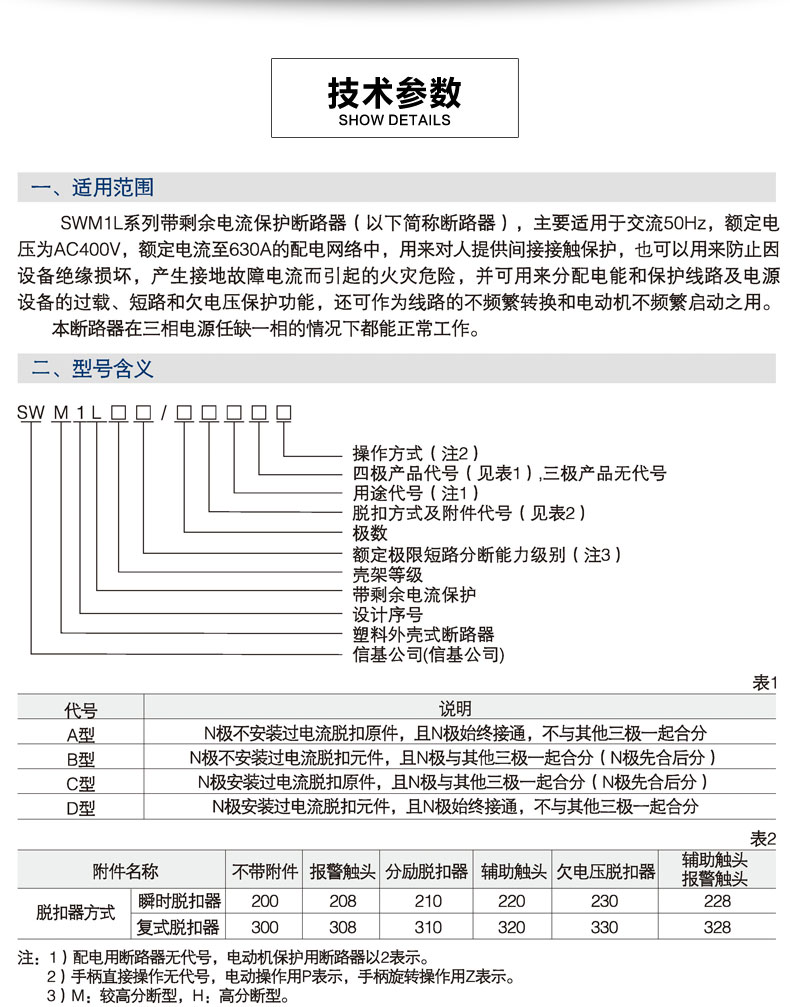

APPLICATION

SWM1L residual current protection circuit breaker is suitable to the power distributionsystem ofAC50Hz,rated voltage400V,rated current to 800Ato supply indirect contact protection and preventthefire caused bythe earth faultcurrentbecause ofthe insulation damaged of equipment. It also can be used to distribute power and protect circuit and overload, shortcircuit, undervoltage, also non-frequenttransferofcircuitornon frequent startingofmotor.

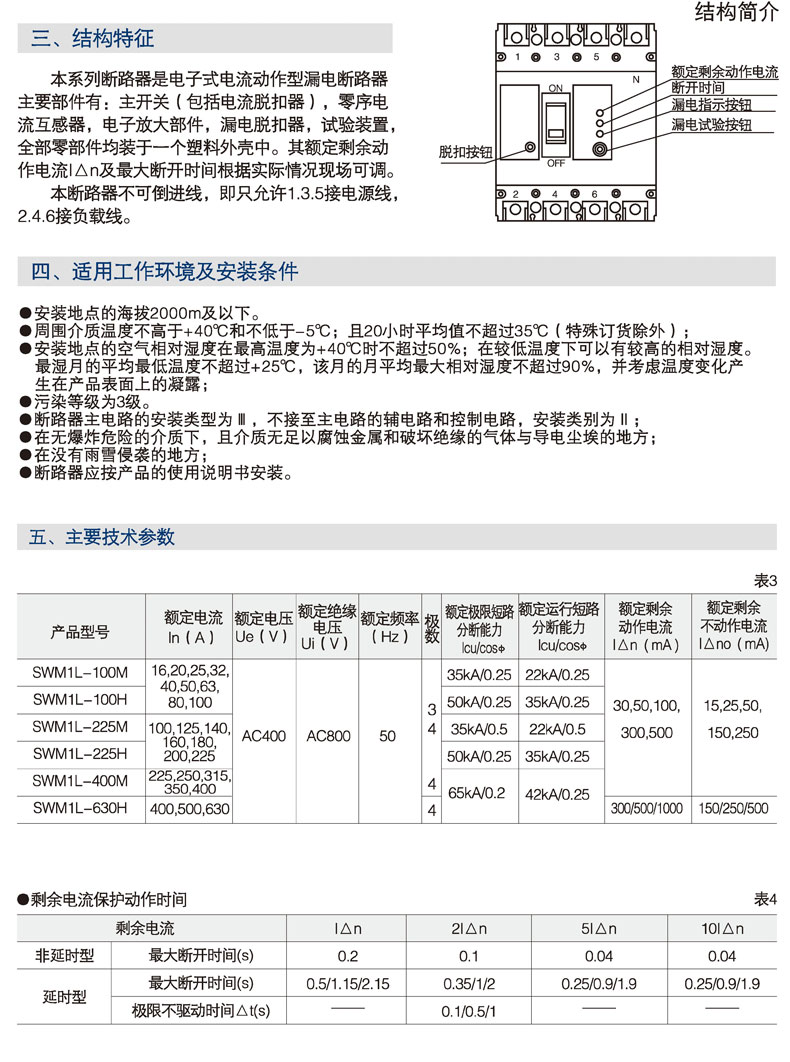

TECHNICAL PARAMETER



Model Rated Current In(A) Rated Voltage(V) Rated Insulation Voltage(V) Rated Frequency(Hz) Rated ultimate short-circuit breaking capacity Rated operating short-circuit breaking capacity Rated residual operating current Rated residual non-operating current
SWM1L-100M 16,20,25,32,40,50,63,80,100 AC400 AC800 50Hz 35ka/0.25 22ka/0.25 30,50,100,300,500 15,25,50,150,250
SWM1L-100H 50ka/0.25 35ka/0.25
SWM1L-225M 100,125,140,160,180,200,225 35ka/0.5 22ka/0.5
SWM1L-225H 50ka/0.25 35ka/0.25
SWM1L-400M 225,250,315,350,400 65ka/0.2 42ka/0.25
SWM1L-630H 400,500,630 300/500/1000 150/250/500
