| Type | Loop | Material quality | Installation hole spacing (W2*Lmm) | Overall dimensions (W1*D*Hmm) | Cable interface | |||
| Top cover | Face frame/ bottom box | Terminal blocks | Above the box(mm) | Under the box(mm) | ||||
| GNB F01-4 | 4 | PC | PC+ABS | Brass | 88*150 | 129*102*200 | 2*22 | 2*22 |
| GNB F01-6 | 6 | 124*150 | 165*102*200 | 2*22 | 2*22 | |||
| 1*32 | 1*32 | |||||||
| GNB F01-9 | 9 | 170*150 | 219*102*200 | 2*22 | 2*22 | |||
| 2*32 | 2*32 | |||||||
| GNB F01-12 | 12 | 220*170 | 270*102*220 | 2*22 | 2*22 | |||
| 3*32 | 3*32 | |||||||
| GNB F01-18 | 18 | 300*170 | 280*112*230 | 4*22 | 4*22 | |||
| 4*32 | 4*32 | |||||||
Scope of application

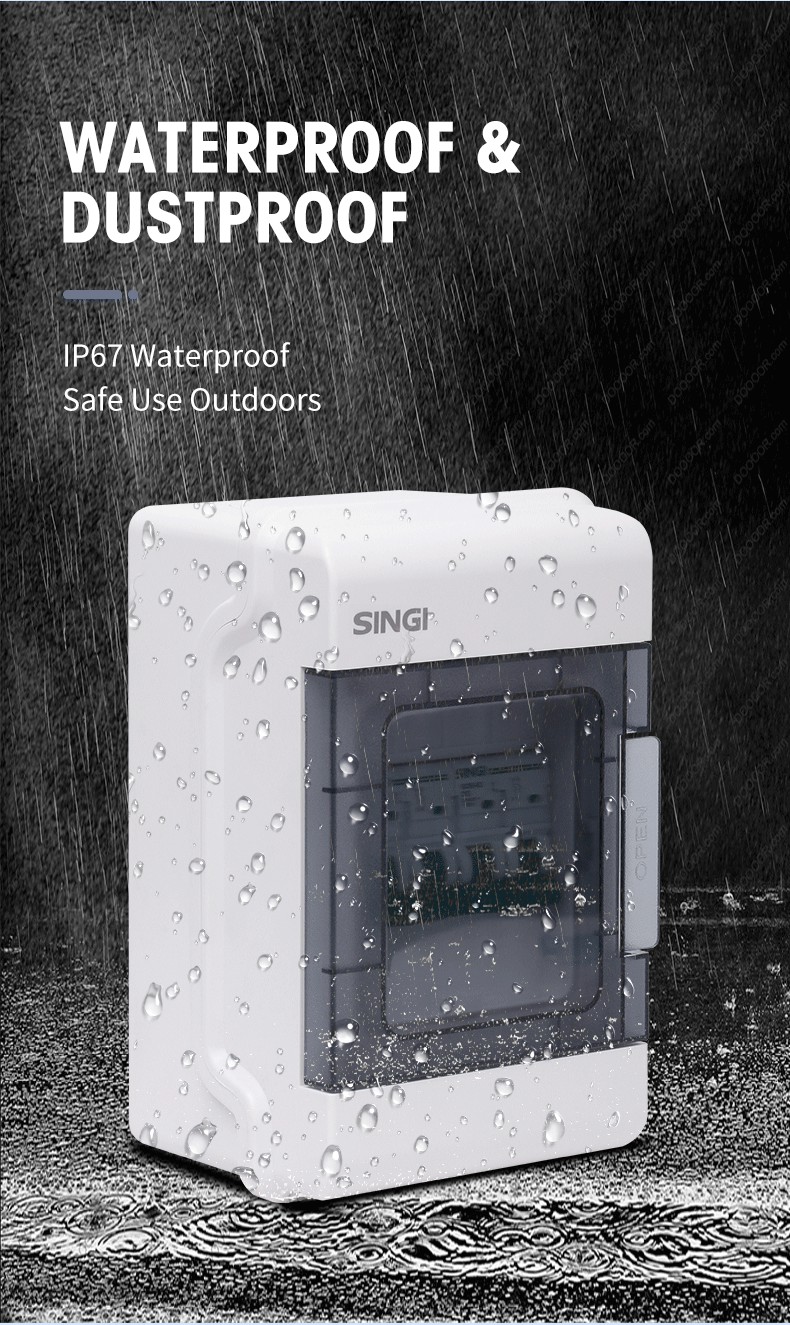

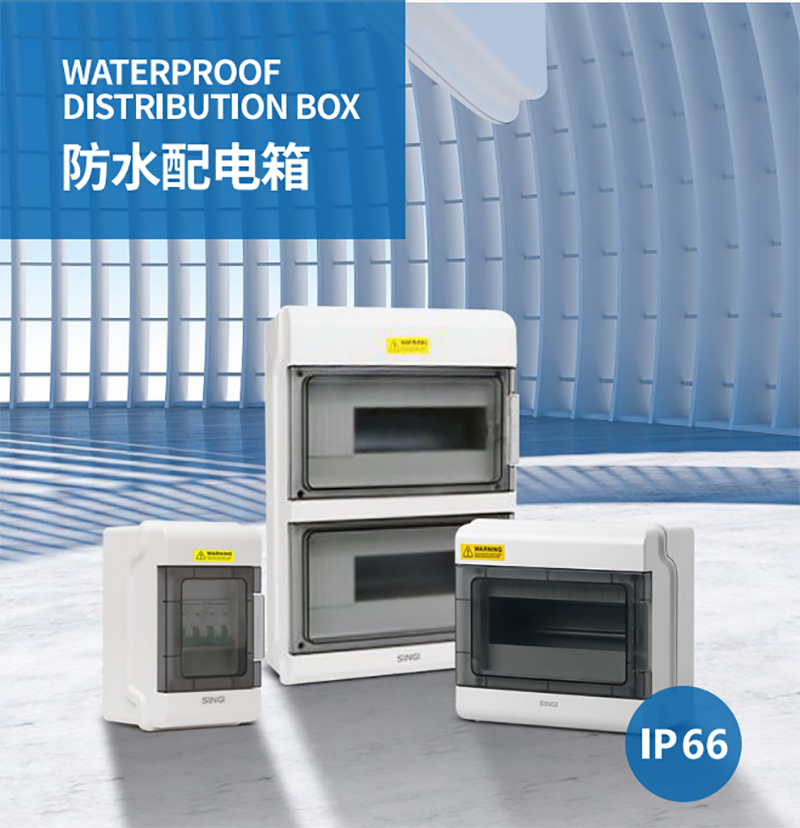

This waterproof distribution box is applicable to housing, factory, workshop, outdoor and other places, and is also widely used in the field of new energy charging piles and photovoltaic, with the rated voltage not exceeding 400V Ac。The protection grade of the product is IP66, which can meet the outdoor
requirements and meet the requirements of water, dust and ultraviolet protection.
Note: The protection grade IP66 is the state when it is not installed with holes.
We also have products such as distribution boxes, junction boxes, combiner boxes, grid-connected boxes and so on. You can consult us about them.
