Electrical Circuit Breaker Power Plastic Distribution Box Board Panel

状态：
Num：
Inquire Add to Basket

Product Parameters

The distribution boxes GNB-10 series are designed for mounting in newly built buildings or buildings in reconstruction.

They are a module box with mounted protective devices of the given flats electrical current circuit circles.

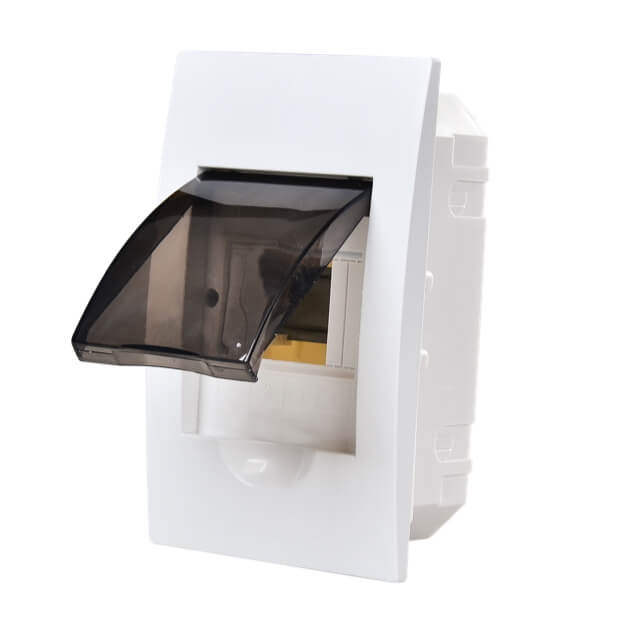

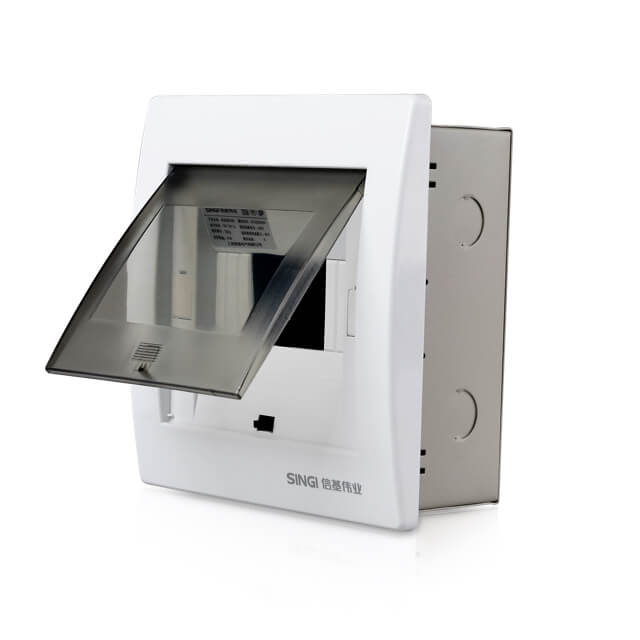

They are supplied with transparent door for each row opening upwards to 90°.

They are made of white self-extinguishing plastic, resistant to heat and high temperature with IP code: IP 40.

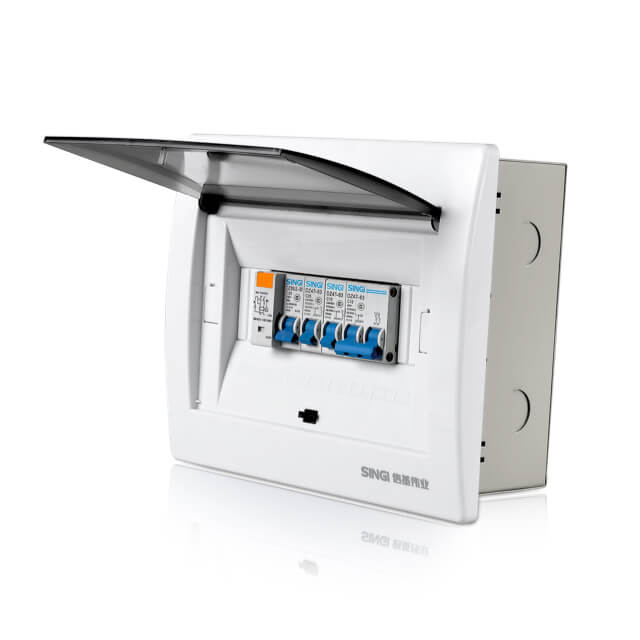

 The mounted device in the box is protected from direct contact to the current leading parts.

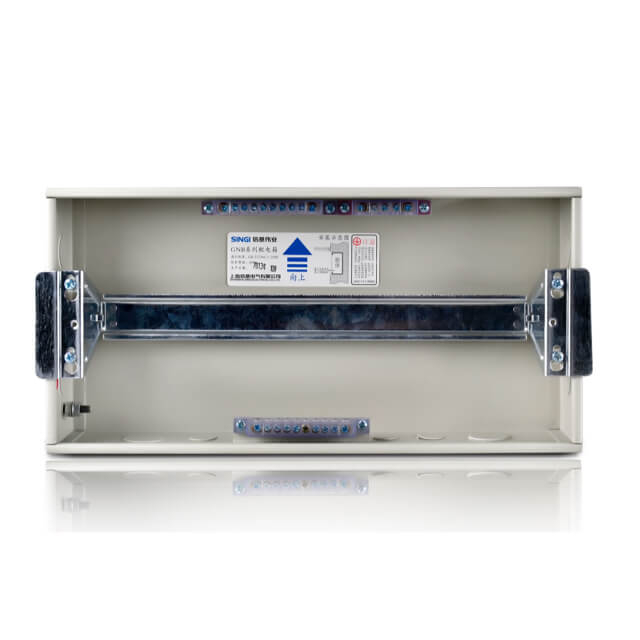

They are offered with DIN-rail for device mounting and terminal strips for the neutral and earthing conductor joining.

 Mounted directly on the walls with screws.


Key Infomation

  • Standard IEC60670

  • Protection degree IP30;

  • 4,7,10,13,15,18,20,26,30,36,39,45,54,72  modules available;

  • 8-20circuits single row, 24-40 circuits double rows available;

  • Flush and surface installation available;

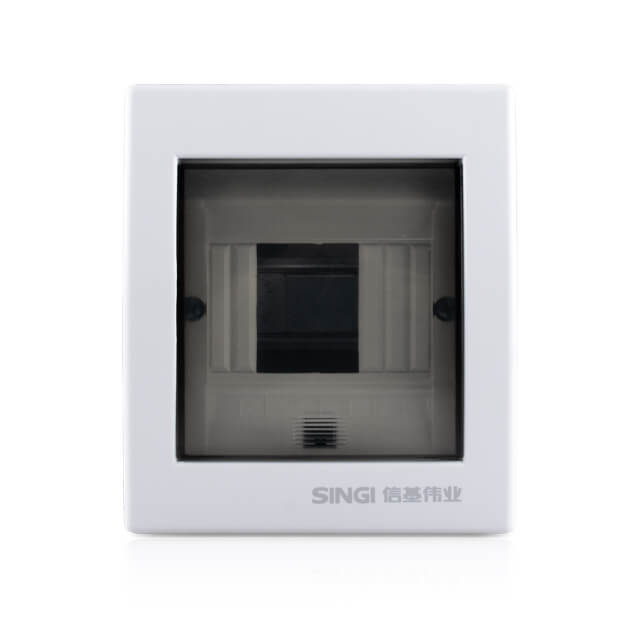

  • Transparent and opaque available;

  • Cambered and streamlined  surface;

  • Convenient bound opening key;

  • Flame-retardant PC panel ,ivory-white ,never fade ,ABS frame;

  • The installation screw is occlusion ,elegant ;

  • Terminal with flame-retardant shield, wiring is safe and reliable;

  • The base is good cool-rolled steel plate , single row ,box is 0.8mm thickness, double or multi rows 1.0mm thickness and the surface is plastic casted;

  • Good zinc-plated din to prevent from rust.

  • Adjustable DIN rail ,adjustable depth;

  • Certificates CE &CB.

  • More than 10 years professional distribution box manufacturer;

  • Parts are processed by ourselves to make sure of the quality  abd can be  supplied for your DIY;Quality insurance 18months;

  • factory established in 1980.

SPECIFICATION


Model

Remark

GNB-3004

4 circuits flush  installation with transparent  cover

4circuits flush installation without transparent  cover

4 circuits surface  installation with transparent  cover

4circuits surface installation without transparent  cover

GNB-3007

7circuits flush  installation with transparent  cover

7circuits flush installation without transparent  cover

7circuits surface  installation with transparent  cover

7circuits surface installation without transparent  cover

GNB-3010

10circuits flush  installation with transparent  cover

10circuits flush installation without transparent  cover

10circuits surface  installation with transparent  cover

10circuits surface installation without transparent  cover

GNB-3013

13circuits flush  installation with transparent  cover

13circuits flush installation without transparent  cover

13circuits surface  installation with transparent  cover

13circuits surface installation without transparent  cover

GNB-3015

15circuits flush  installation with transparent  cover

15circuits flush installation without transparent  cover

15circuits surface  installation with transparent  cover

15circuits surface installation without transparent  cover

GNB-3018

18circuits flush  installation with transparent  cover

18circuits flush installation without transparent  cover

18circuits surface  installation with transparent  cover

18circuits surface installation without transparent  cover

GNB-3021

21circuits flush  installation with transparent  cover

21circuits flush installation without transparent  cover

21circuits surface  installation with transparent  cover

21circuits surface installation without transparent  cover

GNB-3020

20circuits flush  installation with transparent  cover

20circuits flush installation without transparent  cover

20circuits surface  installation with transparent  cover

20circuits surface installation without transparent  cover

GNB-3026

26circuits flush  installation with transparent  cover

26circuits flush installation without transparent  cover

26circuits surface  installation with transparent  cover

26circuits surface installation without transparent  cover

GNB-3030

30circuits flush  installation with transparent  cover

30circuits flush installation without transparent  cover

30circuits surface  installation with transparent  cover

30circuits surface installation without transparent  cover



GNB-3036

36circuits flush  installation with transparent  cover

36circuits flush installation without transparent  cover

36circuits surface  installation with transparent  cover

36circuits surface installation without transparent  cover

GNB-3039

39circuits flush  installation with transparent  cover

39circuits flush installation without transparent  cover

39circuits surface  installation with transparent  cover

39circuits surface installation without transparent  cover

GNB-3045

45circuits flush  installation with transparent  cover

45circuits flush installation without transparent  cover

45circuits surface  installation with transparent  cover

45circuits surface installation without transparent  cover

GNB-3054

54circuits flush  installation with transparent  cover

54circuits flush installation without transparent  cover

54circuits surface  installation with transparent  cover

54circuits surface installation without transparent  cover

GNB-3072

72circuits flush  installation with transparent  cover

72circuits flush installation without transparent  cover

72circuits surface  installation with transparent  cover

72circuits surface installation without transparent  cover

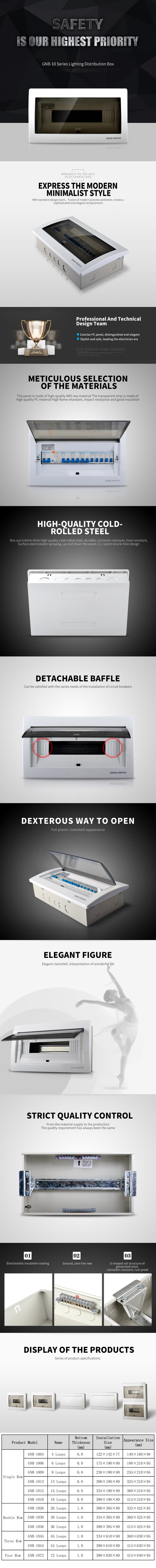

GNB10官网详情页1 (1)
