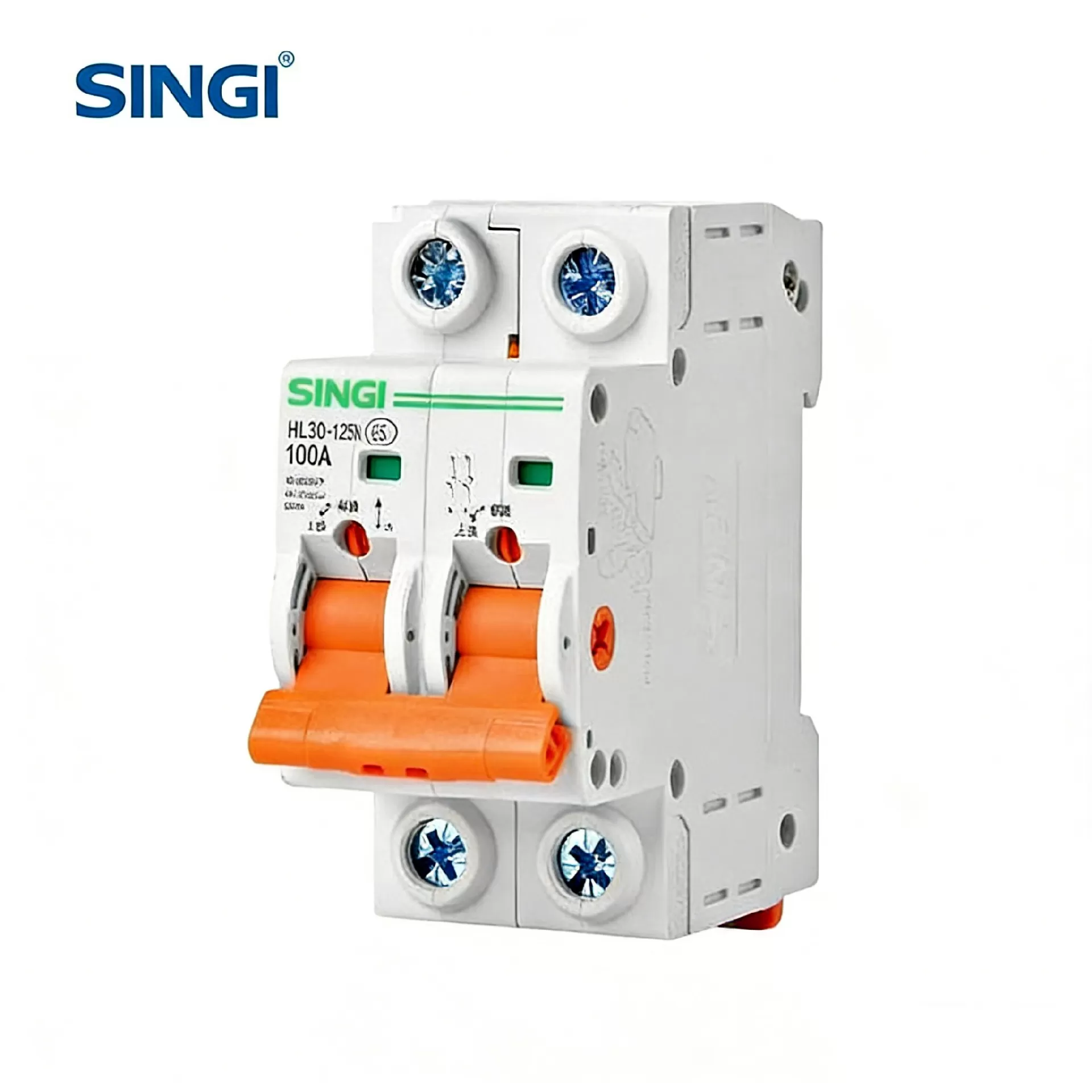

HL30-125N Isolating Switch

状态:
Num:
Product Parameters

Product Description

HL30 series isolation switch is suitable of AC 50Hz or 60Hz, rated voltage
400V and below,  rate current 100A and below, to be the main switch of the
terminal appliance, as well as control the electromotor, small-power appliance
and illumination etc. It conforms to the standartds IEC 60947-3 and GB14048.3

Basic Technical Parameter



Rated Voltage Rated Current In (A) Rated Making and breaking capacity Rated short-circuit breaking capacity (A) Rated short circuit fuse capacity (A/s)

230/4400V

32;63;80;100;125;

3le, 1.05Ue,COS=0.65

1500

2000

 Remark:
1.  No. of Poles: 1P;2P;3P;4P
2. On nomal din rail TH35mm
3. Wire connecting with 25 sqmm and below

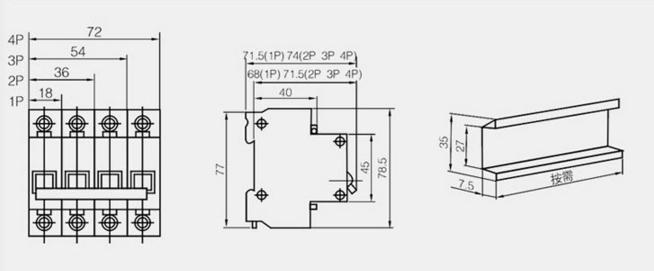

Product Dimension

详情页1isolating switch

isolating switchisolating switchisolating switchisolating switch
