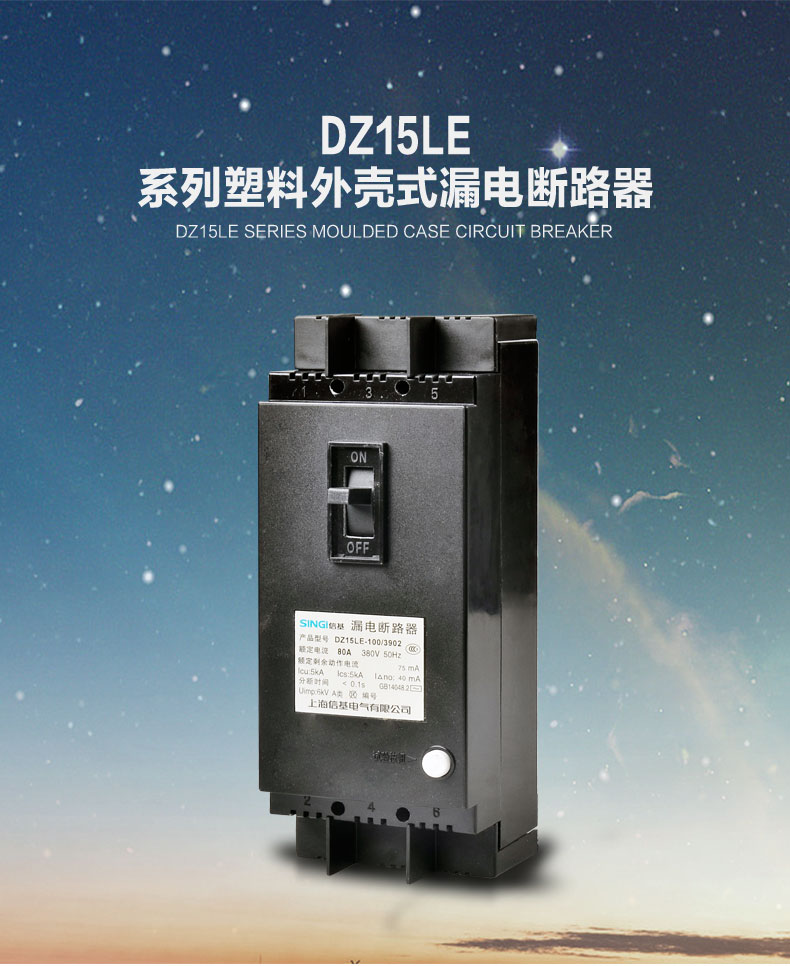

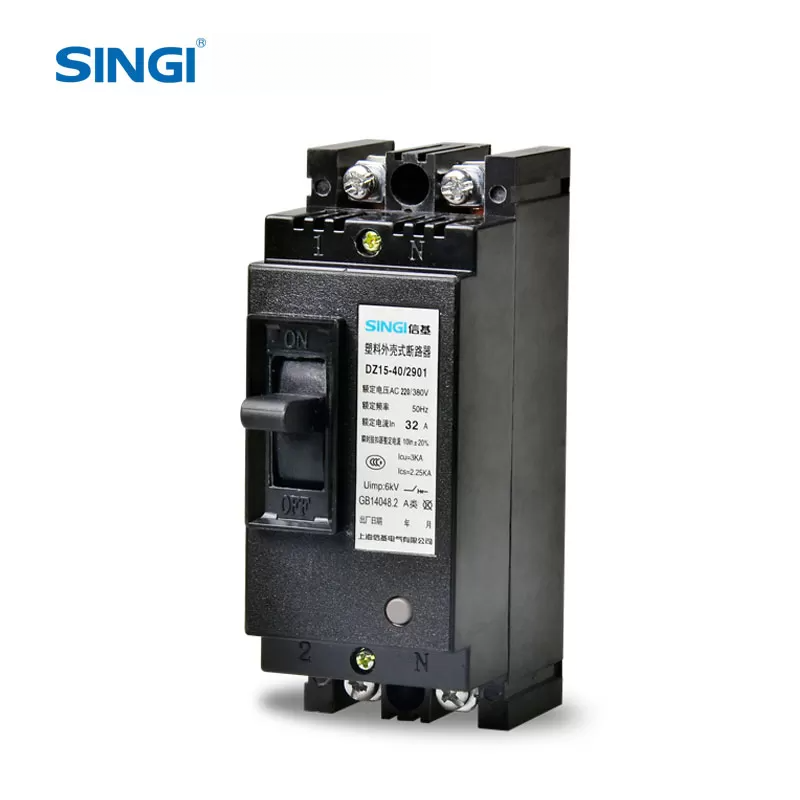

DZ15LE

Rated Voltage:380V AC Rated Frequency:50Hz Breaking Capacity:5ka OEM:Available
状态：
Num：
Inquire Add to Basket

Product Parameters

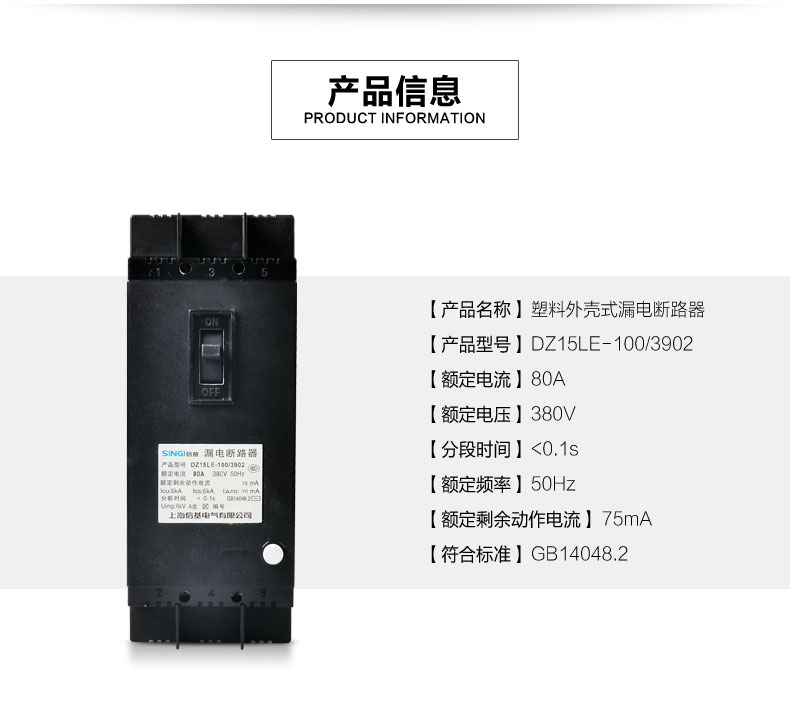

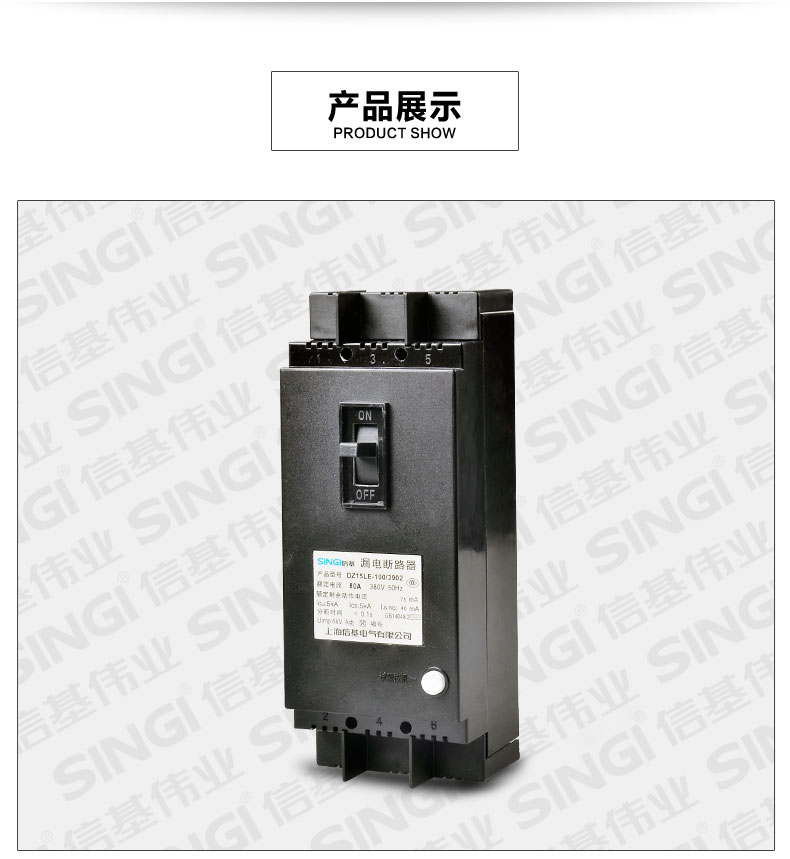

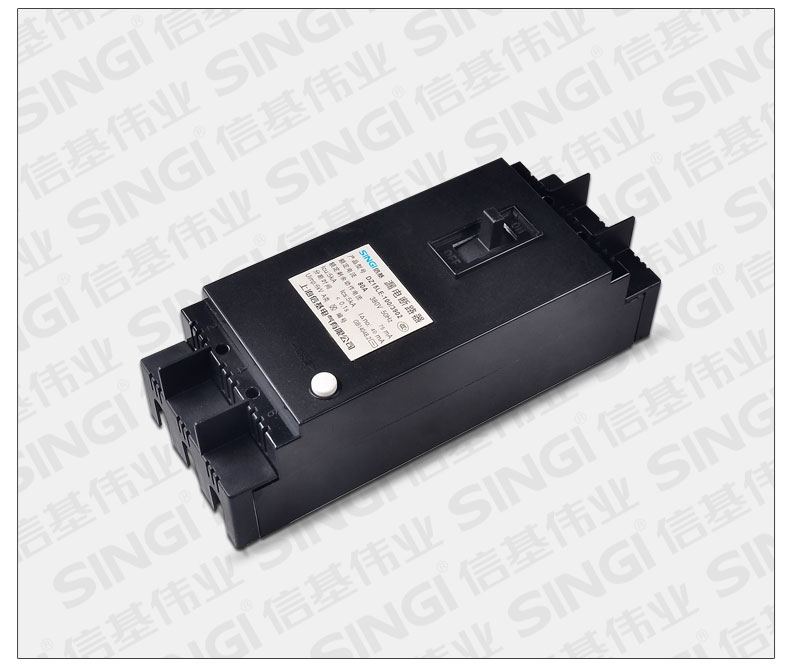

DZ15LE Series Residual Moulded Case Circuit Breaker

Product Introduction

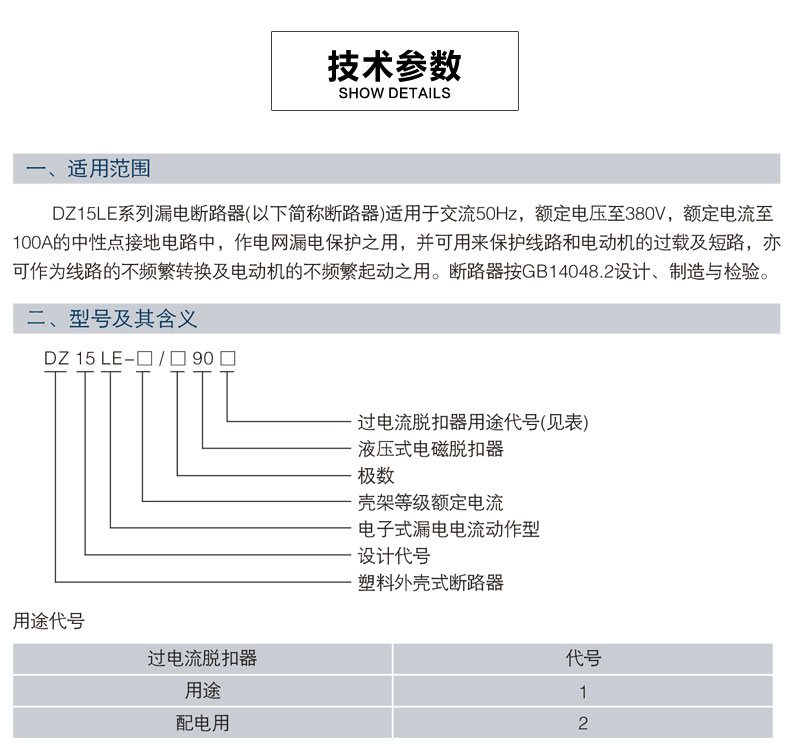

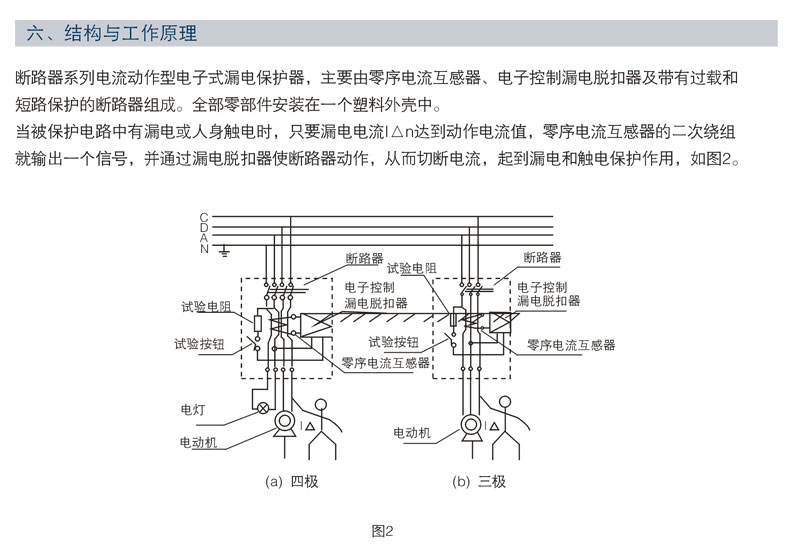

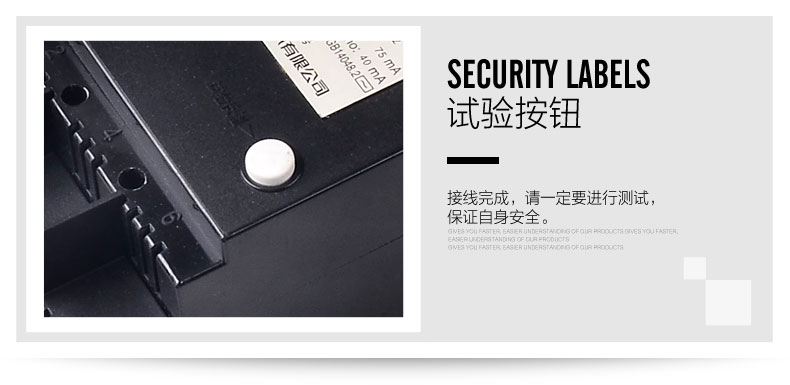

dz15le series leakage circuit breakers(hereinafter referred to as circuit breakers)are applicable to neutral point grounding circuits with AC 50hz, rated voltage to 380v and rated current to 100a, and can be used to protect the overload and short circuits of lines and motors, and can also be used for infrequent conversion of lines and frequent starting of motors. The circuit breaker shall be designed, manufactured and inspected as per gb14048.2.

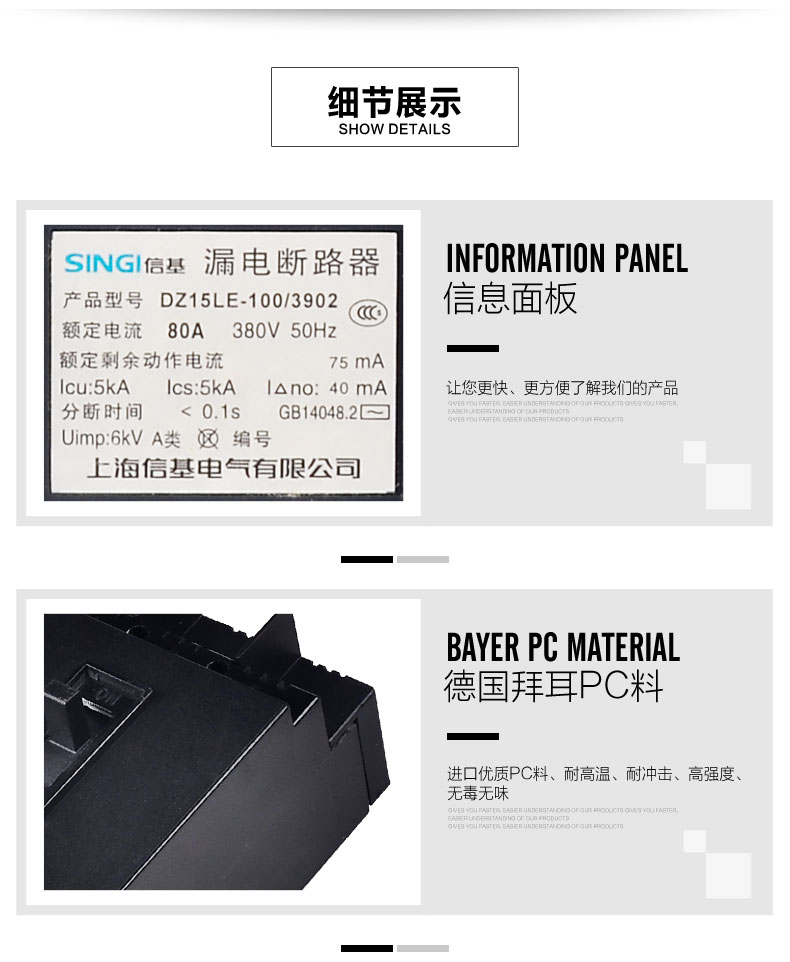

Technical Parameter

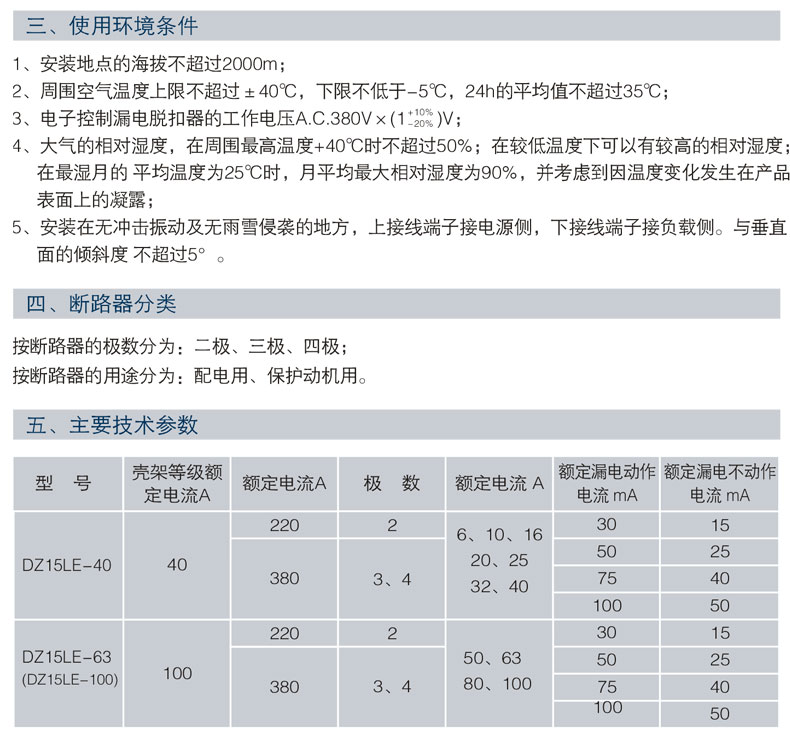

Type Frame Rated Current A Rated Current A NO.of Pole Rated Current A Rated leakage current mA Rated leakage current mA
DZ15LE-40 40 220 2   6,10,16,20,25,32,40 30 15
380 3,4 50 25
75 40
100 50
DZ15LE-63
(DZ15LE-100)		 100 220 2 50,63,80,100 30 15
380 3,4 50 25
75 40
100 50

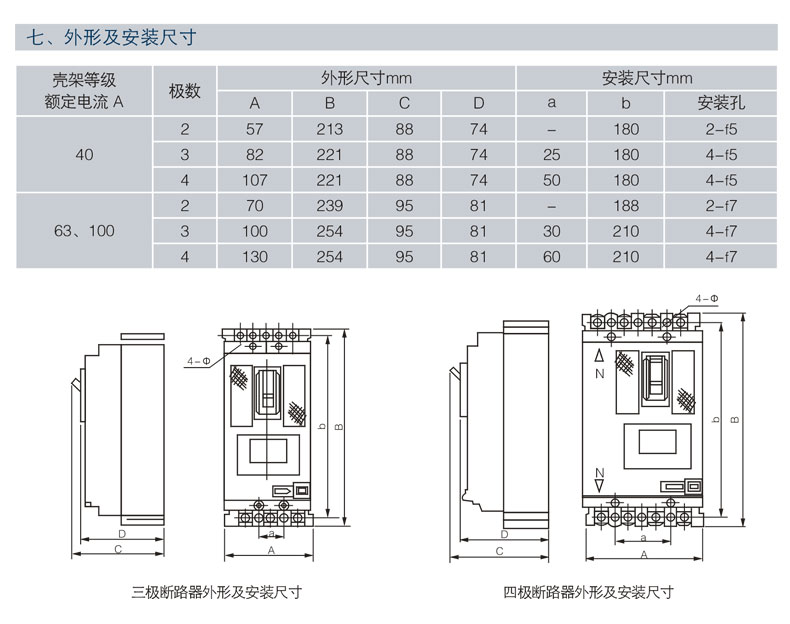

Installation Measurement

Frame Rated Current A No.of Pole Product Size mm Installation Measurement mm
A B C D a b Installation Hole
40 2 57 213 88 74 - 180 2-f5
3 82 221 88 74 25 180 4-f5
4 107 221 88 74 50 180 4-f5
63,100 2 70 239 95 81 - 188 2-f7
3 100 254 95 81 30 210 4-f7
4 130 254 95 81 60 210 4-f7
