SGB5L-40 RCBO Residual Current Circuit Breaker with Overcurrent Protection

Product Overview

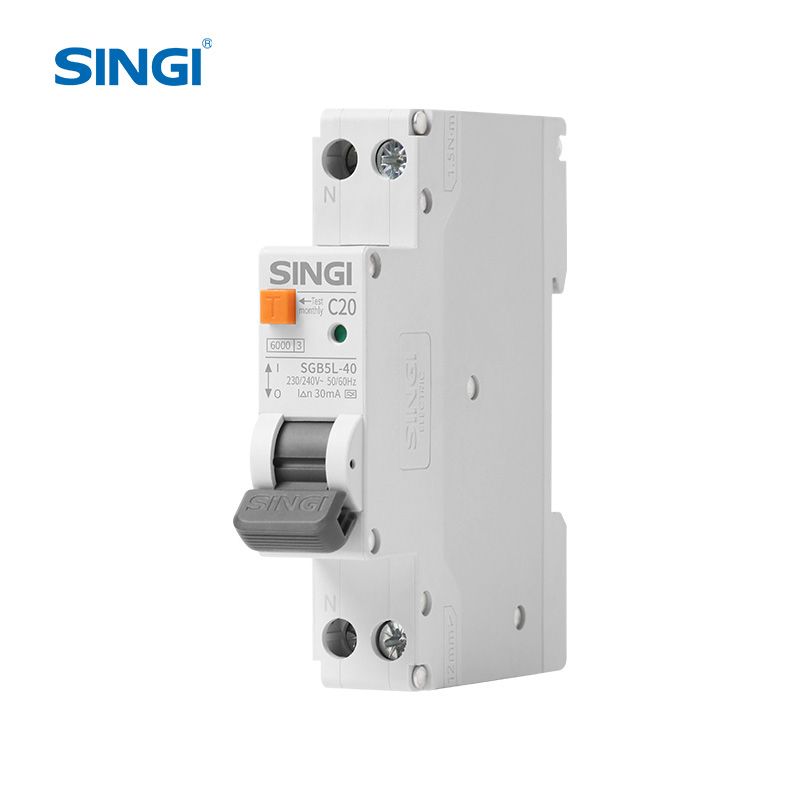

SGB5L-40 series 1P+N miniature residual current circuit breaker (RCBO) is designed for 50/60Hz single-phase circuits with a rated voltage of 230/240V AC. It integrates residual current leakage protection, overload protection and short-circuit protection in one compact unit, delivering all-round safety for civil and commercial electrical systems.

This RCBO disconnects both the phase line and neutral line simultaneously, and maintains reliable leakage protection even with reverse wiring. Featuring a compact structure and high breaking capacity, it complies with EN61009-1, AS/NZS IEC 61009-1 and GB/T16917.1 standards, and is an ideal safety component for terminal power distribution.

Key Features

• Triple integrated protection: residual current leakage protection, overload protection and short-circuit protection

• Flexible configuration: residual operating current optional in 10mA / 30mA / 50mA / 100mA; Type A and Type AC residual current protection available


• 1P+N structure: cuts off phase and neutral poles at the same time; leakage protection remains fully functional even under reverse wiring


• Thermomagnetic tripping mechanism, with B / C instant release curves to match lighting and motor-type loads

• High breaking reliability: both ultimate breaking capacity (Icu) and operational breaking capacity (Ics) reach 6kA

• Standard 35mm DIN-rail mounting, compact footprint and IP20 protection, compatible with mainstream distribution enclosures

• Stable performance in temperatures from -25℃ to +70℃, suitable for various indoor installation scenarios

TYPE MEANING

BREAKING CHARACTERSTIC CURVE

DEMENSION

Application guidelines:
1. Press the test button once a month, check leakage protective device.
2. When the leakage protective device, the device on the obverse of the red machine instructions.
3. When reclosing circuit breaker, the protection device reset automatically.
