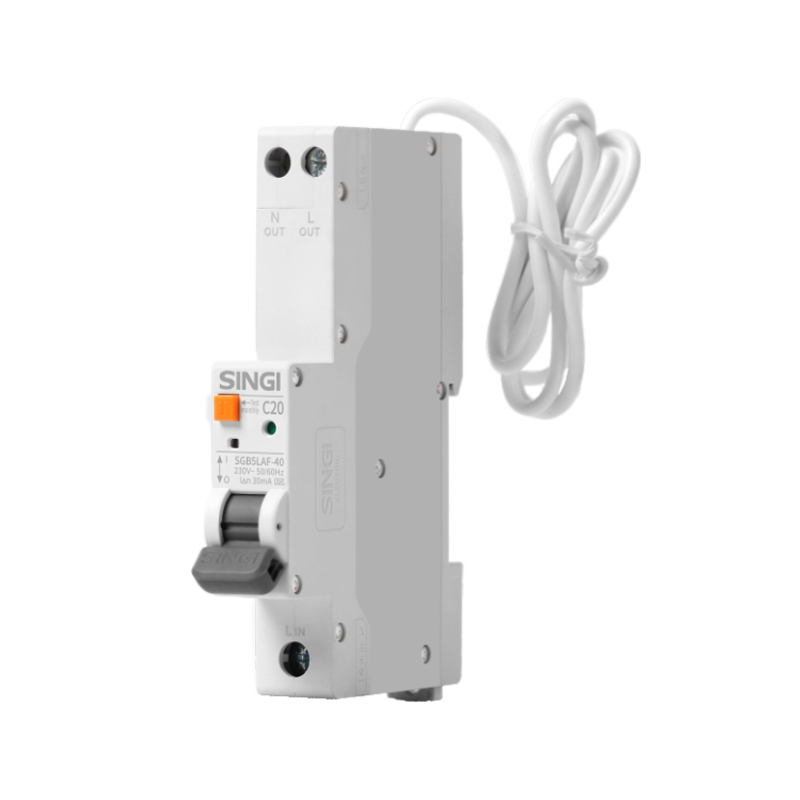

Features benefits
Quick & efficient arc extinguishing
Very low let through energy,class 3
Increases life of installation & equipment
Technical parameter
| Standard | IEC/BS EN 62606,IEC/BS EN 61009-1 |
| Rated short circuit breaking capacity Icn(A) | 6KA |
| Pritection | Overload short circuit ground fault arc fault |
| Rated current,In | 6.10.16.20.25.32.40A |
| Pole | 1P+N(single mode 18mm) |
| Rated residual current breaking value I△n | 10.30.100.300mA |
| Characteristic | B,C curve |
| Rated residual non-operating current | 0.5*I△n |
| Rated impulse withstand voltage Uimp | 4000V |
| Rated voltage | 230/240VAC |
| Ambient temperature(℃) | -25~+40℃,95% humidity |
| Residual current off time at I△t | ≤0.1S |
| Type of trip | Electronic release |
| Terminal blocks | Cables up to 25mm² |
| Protection degree | IP20 |
| Mechanical endvrance | 10000 |
| Electricac endvrance | 4000 |
| Installation | 35mm DIN rail |
| Rated current(A) | Rated residual current breaking value I△n | Type AC | Type A | ||
| B curve | C curve | B curve | C curve | ||
| 6 | 10mA | AFDD-6K/B6/10 | AFDD-6K/C6/10 | AFDD-6K/B6/10-A | AFDD-6K/C6/10-A |
| 10 | AFDD-6K/B10/10 | AFDD-6K/C10/10 | AFDD-6K/B10/10-A | AFDD-6K/C10/10-A | |
| 16 | AFDD-6K/B16/10 | AFDD-6K/C16/10 | AFDD-6K/B16/10-A | AFDD-6K/C16/10-A | |
| 20 | AFDD-6K/B20/10 | AFDD-6K/C20/10 | AFDD-6K/B20/10-A | AFDD-6K/C20/10-A | |
| 25 | AFDD-6K/B25/10 | AFDD-6K/C25/10 | AFDD-6K/B25/10-A | AFDD-6K/C25/10-A | |
| 32 | AFDD-6K/B32/10 | AFDD-6K/C32/10 | AFDD-6K/B32/10-A | AFDD-6K/C32/10-A | |
| 40 | AFDD-6K/B40/10 | AFDD-6K/C40/10 | AFDD-6K/B40/10-A | AFDD-6K/C40/10-A | |
| 6 | 30mA | AFDD-6K/B6/30 | AFDD-6K/C6/30 | AFDD-6K/B6/30-A | AFDD-6K/C6/30-A |
| 10 | AFDD-6K/B10/30 | AFDD-6K/C10/30 | AFDD-6K/B10/30-A | AFDD-6K/C10/30-A | |
| 16 | AFDD-6K/B16/30 | AFDD-6K/C16/30 | AFDD-6K/B16/30-A | AFDD-6K/C16/30-A | |
| 20 | AFDD-6K/B20/30 | AFDD-6K/C20/30 | AFDD-6K/B20/30-A | AFDD-6K/C20/30-A | |
| 25 | AFDD-6K/B25/30 | AFDD-6K/C25/30 | AFDD-6K/B25/30-A | AFDD-6K/C25/30-A | |
| 32 | AFDD-6K/B32/30 | AFDD-6K/C32/30 | AFDD-6K/B32/30-A | AFDD-6K/C32/30-A | |
| 40 | AFDD-6K/B40/30 | AFDD-6K/C40/30 | AFDD-6K/B40/30-A | AFDD-6K/C40/30-A | |
| 6 | 100mA | AFDD-6K/B6/100 | AFDD-6K/C6/100 | AFDD-6K/B6/100-A | AFDD-6K/C6/100-A |
| 10 | AFDD-6K/B10/100 | AFDD-6K/C10/100 | AFDD-6K/B10/100-A | AFDD-6K/C10/100-A | |
| 16 | AFDD-6K/B16/100 | AFDD-6K/C16/100 | AFDD-6K/B16/100-A | AFDD-6K/C16/100-A | |
| 20 | AFDD-6K/B20/100 | AFDD-6K/C20/100 | AFDD-6K/B20/100-A | AFDD-6K/C20/100-A | |
| 25 | AFDD-6K/B25/100 | AFDD-6K/C25/100 | AFDD-6K/B25/100-A | AFDD-6K/C25/100-A | |
| 32 | AFDD-6K/B32/100 | AFDD-6K/C32/100 | AFDD-6K/B32/100-A | AFDD-6K/C32/100-A | |
| 40 | AFDD-6K/B40/100 | AFDD-6K/C40/100 | AFDD-6K/B40/100-A | AFDD-6K/C40/100-A | |
| 6 | 300mA | AFDD-6K/B6/300 | AFDD-6K/C6/300 | AFDD-6K/B6/300-A | AFDD-6K/C6/300-A |
| 10 | AFDD-6K/B10/300 | AFDD-6K/C10/300 | AFDD-6K/B10/300-A | AFDD-6K/C10/300-A | |
| 16 | AFDD-6K/B16/300 | AFDD-6K/C16/300 | AFDD-6K/B16/300-A | AFDD-6K/C16/300-A | |
| 20 | AFDD-6K/B20/300 | AFDD-6K/C20/300 | AFDD-6K/B20/300-A | AFDD-6K/C20/300-A | |
| 25 | AFDD-6K/B25/300 | AFDD-6K/C25/300 | AFDD-6K/B25/300-A | AFDD-6K/C25/300-A | |
| 32 | AFDD-6K/B32/300 | AFDD-6K/C32/300 | AFDD-6K/B32/300-A | AFDD-6K/C32/300-A | |
| 40 | AFDD-6K/B40/300 | AFDD-6K/C40/300 | AFDD-6K/B40/300-A | AFDD-6K/C40/300-A | |
AFDD also konwn as Arc Fault Circuit Interrupter (AFCI) ,Arc Fault Protection Device (AFPD) , Arc Fault Detector (AFD), Arc Fault Circuit Breaker (AFCB),
Arc Fault Monitoring Device,Arc Fault Protector
